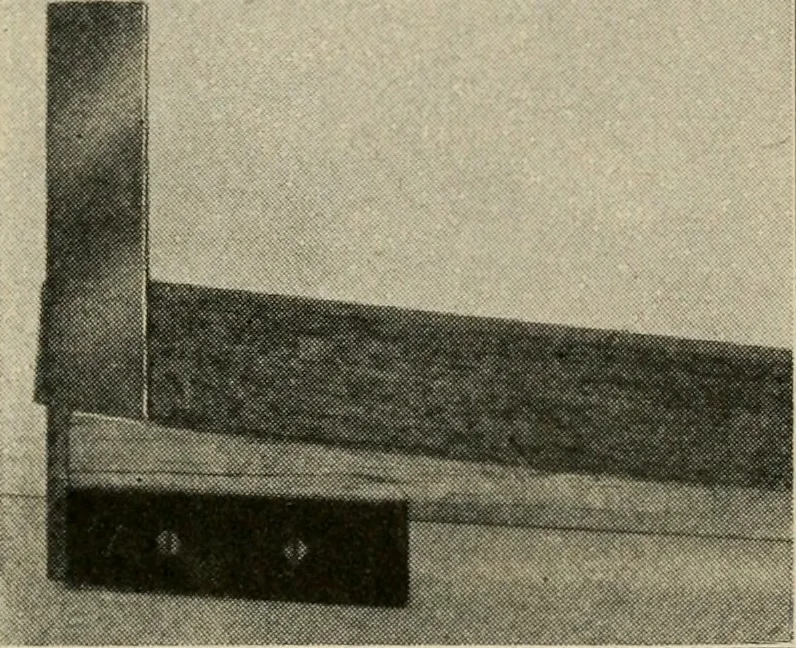

Fig. 242—Book Rack 174 WOODWORK FOR THE GRADES top and 10 inches wide at the bottom. The slant height is 24inches. This gives a slant of 3 inches in 24 inches of height,or 1 inch in width to each 8 inches of height. The slant is equal on each side, therefore … Fig. 243—Lining Across an Endat an Angle on one side the slant is y2 inchto each 8 inches in height. A piece 8 inches in slantlength and y2 inch wider atone end than at the other willexactly offset the slant of thelegs. Such a piece placed be-tween the head of the trysquaieand the leg will give all…
