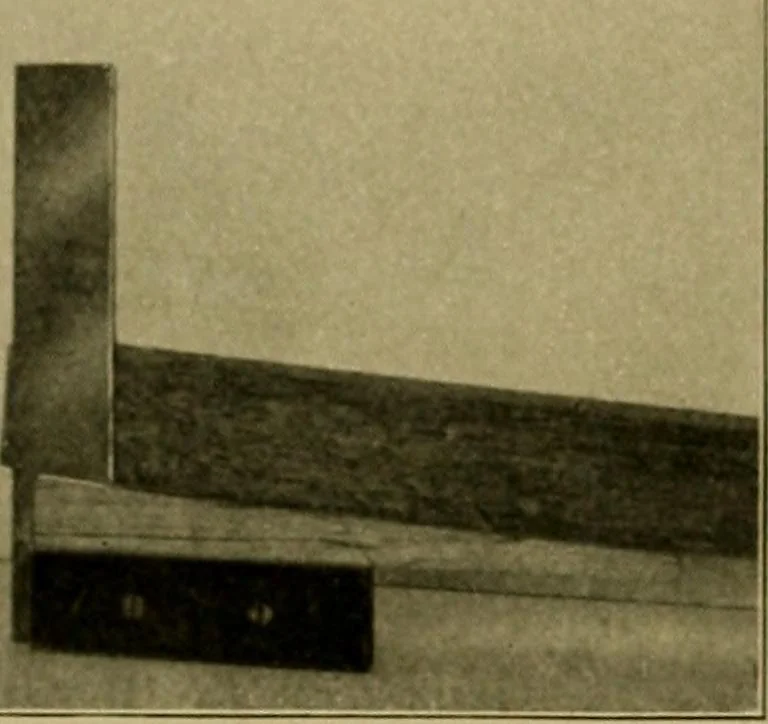

ottom. The slant height is 24inches. This gives a slant of 3 inches in 24 inches of height,or 1 inch in width to each 8 inches of height. The slant is equal on each side, thereforeon one side the slant is ■ _. inchto each 8 inches in height. A piece 8 inches in slantlength and )z inch wider atone… … - Lining Across on Endat an Angle is placed for lining across the ends, Fig. 244 shows how thepiece is used in boring the holes. As a matter of conveniencethe piece is slotted at each endso it will slip over the trysquareblade. Whether the wide or nar-row end is over the blade isdetermined by the…
