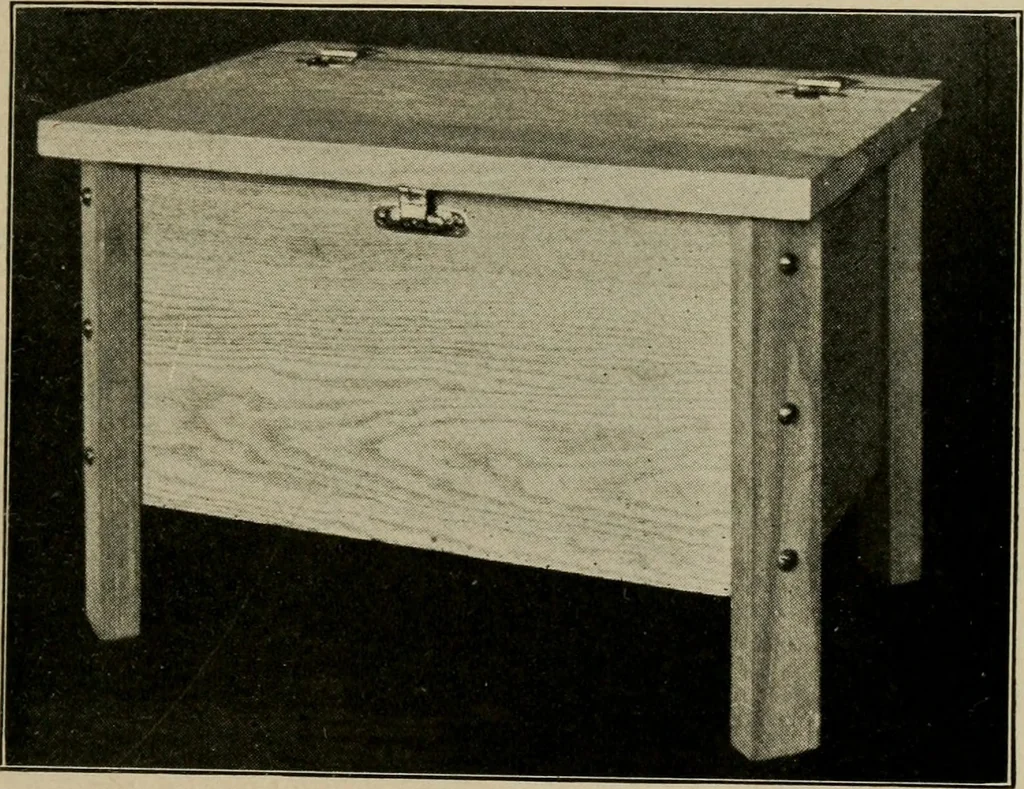

fastened to the ends of the basesimilar to an end in fig. 313. As there would be no cross rodto hold the ends in place larger screws must be used. Theends may extend below the base and form legs. WOODWORK FOR THE GRADES 229 LESSON 71 SHOE BOX Fig. 315 illustrates a box suitable for shoes. Fig. 316… … Fig. 315—Shoe Box squared on edges and ends. To bevel the ends of the sidepiece, follow the directions on page 144 (Fig. 198). Thenailing together is done in the same manner as the nailing ofthe rails for the taboret (Lesson 40). Dowels may be usedas shown in Fig. 200. 230 WOODWORK FOR THE GRADES…
