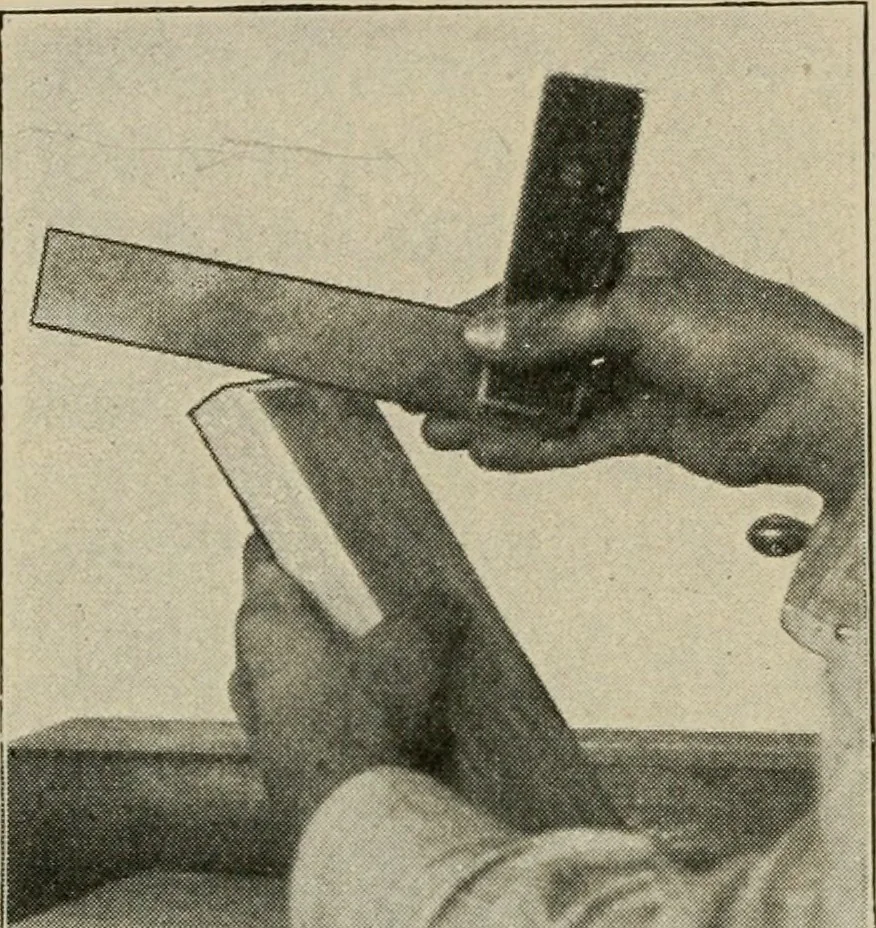

K FOR THE GRADES fers equal, and if we gauged all from the face-surfaces theywould not be alike unless the piece were the same width at each end. Use a pencil inmarking for chamfers and drawlines across ends as well asedges (Fig. 82). In working the chamfer,place the piece in the vise andhold the… … Fig. 84—Testing Chamfer from line to line.Test it with the bladeof the try-square asshown in Fig. 84. Be careful not toplane beyond thelines; rather leaveabout half the widthof each line. After chamferingeach end, place thepiece as shown inFig. 85 and chamferthe edges. In working the edges, the…
