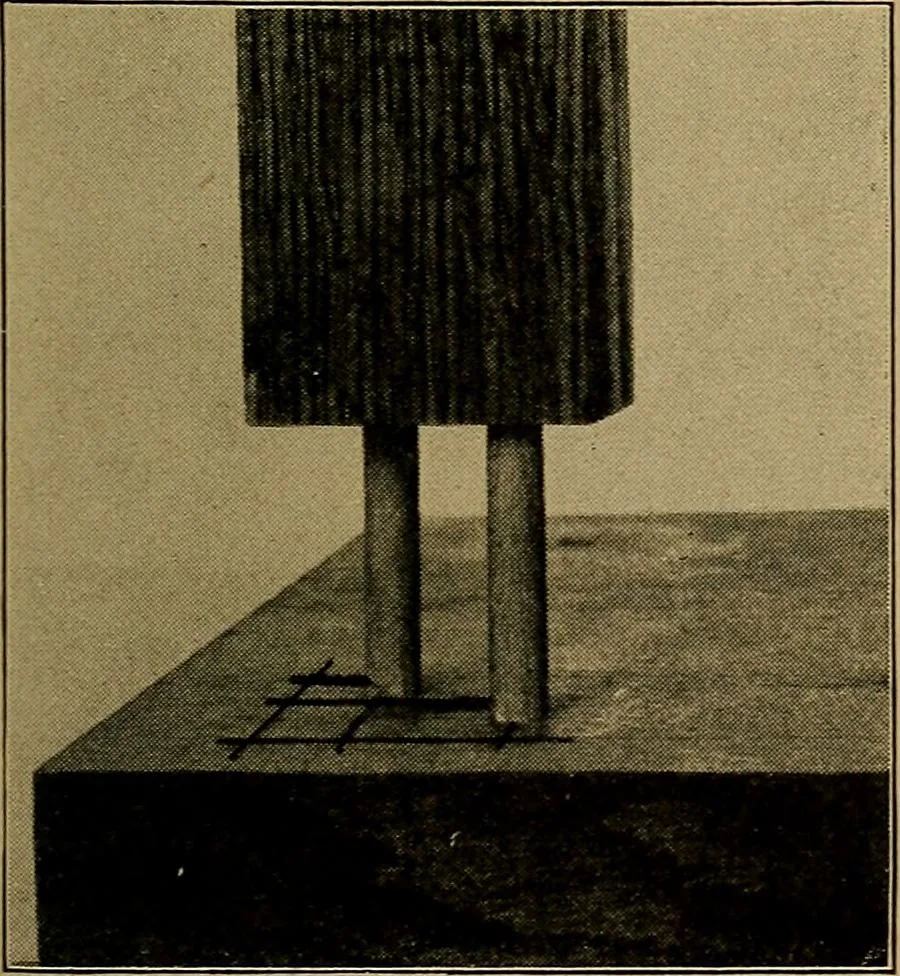

will enter the slot in the screw head is then driven into the bottom of the hole. This is shown in Fig. 172. It may be driven to place by setting a screw over it and driving on thepoint of the screw. Thispiece of metal is to keep thescrew from turning in theleg as the leg is screwed tothe top. The… … Fig, 1 70—Inserting Dowels hollow pin down firmly to the head of the screw, using a blockwith a hole in it to admit the projecting part of the screw. 126 WOODWORK FOR THE GRADES After the glue has dried, the legs may be screwed to the top.Bore holes for the screws and use grease or soap in them.…
