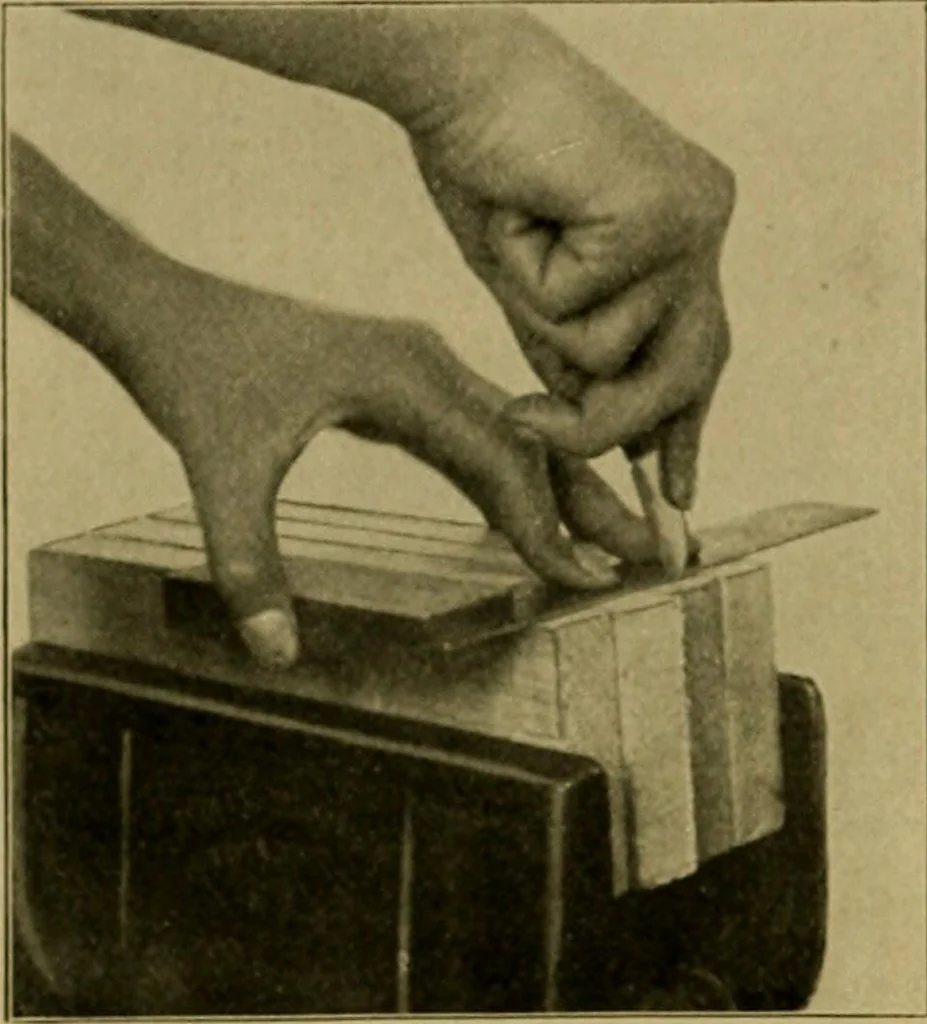

RK FOR THE GRADES side, face-edge up, in the vise as shown in Fig. 182 and draw-two lines across the edges, making the lines exactly the dis-tance apart which you wishthe length cf the pieces tobe. Plan, if you can, sothat one line will be veryclose to one end, so thatonly the opposite end… … Fig. 182- Lining Ends A third way ofmaking the railsis to dress apiecea little more thanfour times as wideasonerail,toallowwaste in ripping.Finish the sur-faces, edges andends; then gaugefor width. Ripapart the same asinmakingthelegs
