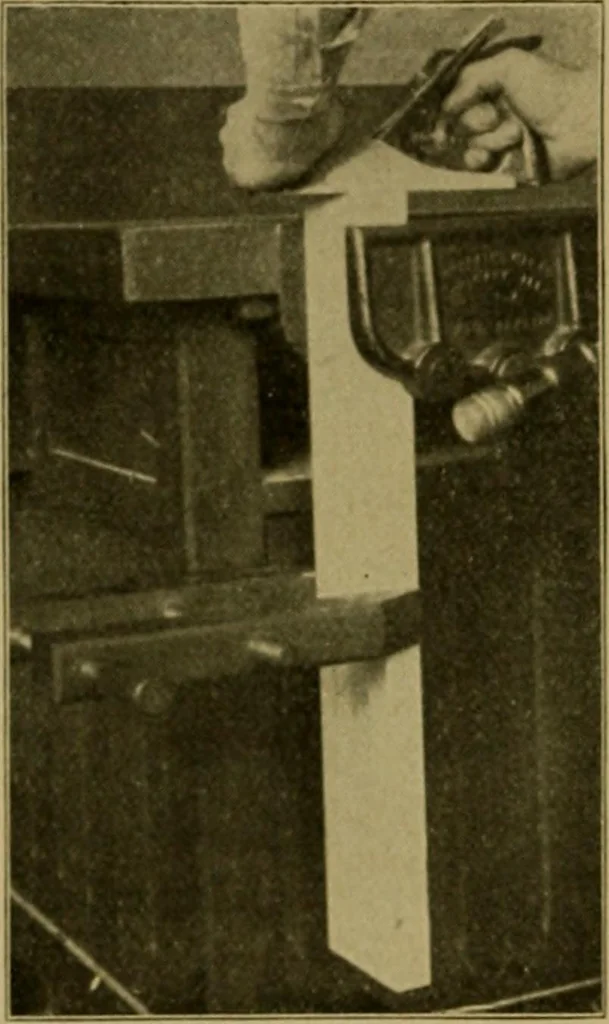

RADES should be cut. As these angles determine the position of thelegs, they should be very carefully lined and worked. To plane them, hold them in the viseas shown in Fig. 201. While the glue is drying,make the shelf ready for cuttingits corners. Intead of layingout the corners by the drawing,the… … Fig. I 97 Jointing En is of Legs relative position in nailing to-gether. Trim the corners asdirected for the bread board(Lesson 29). It is easier to nail the legsif nail holes are drilled. Tolocate the holes, place the iej side by side, their top ends even, and draw a short pencil lineich leg to…
