Woodwork for the grades, for use in manual training classes; fully illustrated with three hundred half-tone engravings from actual shop practice, and many working drawings of educational shop problems (1913)
Selden, Frank Henry · Chicago, Orr & Lockett Hardware Co · leaf 174

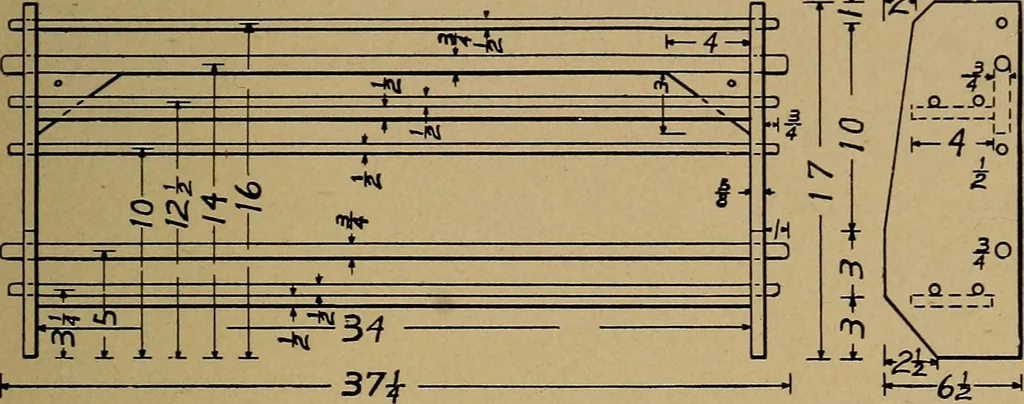

Fig. 237—Mate Rack WOODWORK FOR THE GRADES 171 securely glued and screwed to the end and cross-rod and to theshelf so that there will be no possibility of their becoming … Fig. 238—Plate Rack 16 loosened. The holes in these blocks should be eitherinches, 32 inches or 48 inches from center to center. All the cross-rods may extend entirely through the ends as in Fig. 235, or some or all may be in blind holes as the rails of the book rack, (Fig. 232) Fig. 239 is an end…
Woodwork
