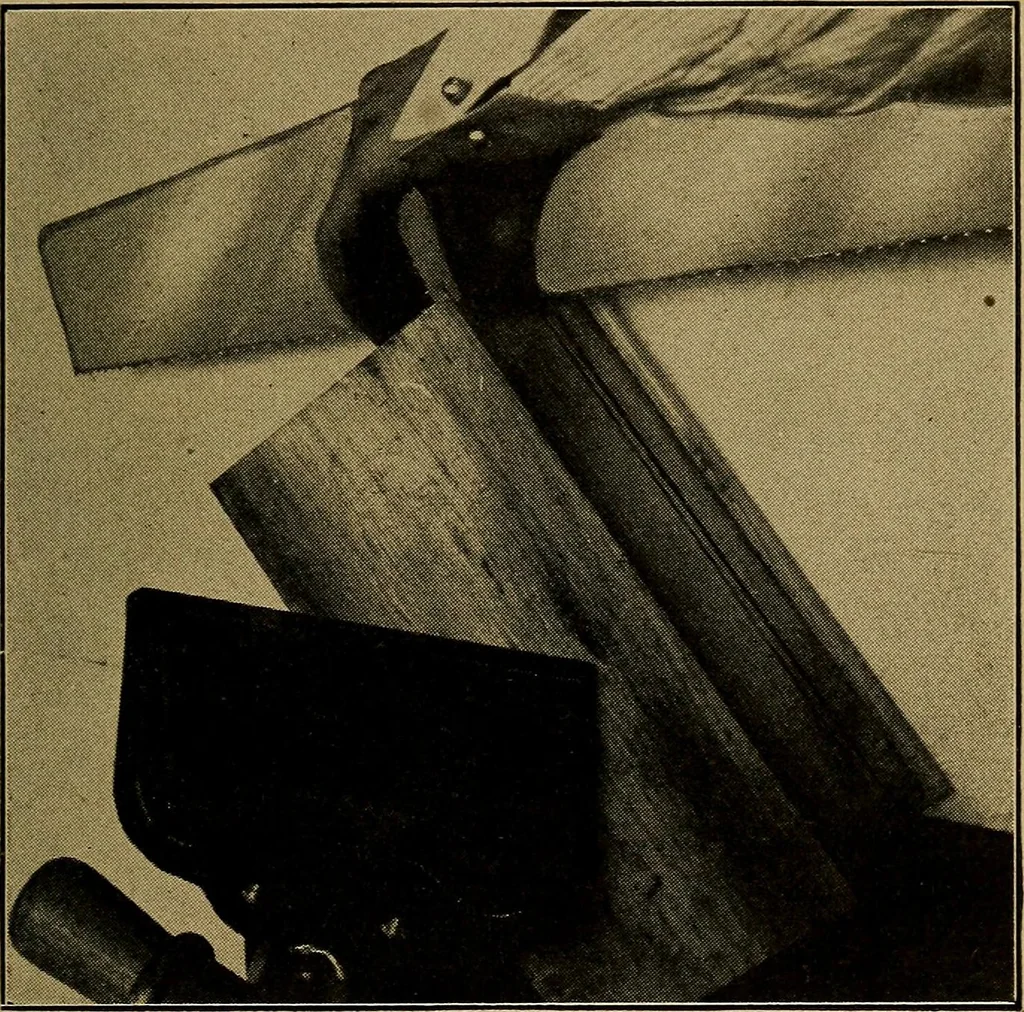

the brads on the outside and nail this piece tothe ends. Test the piece with the try-square and if necessary nail a Dal brace on what is to be the top as shown in Fig. 292. The brace may be nailed at one end, then after the box is WOODWORK FOR THE GRADES 213 squared, the other end nailed. The box… … Fig. 296—Ripping Box Apait The bottom is the next part to be nailed. Its position islocated by measuring in from each edge and end. Calculate theposition of the brads and draw light pencil lines showing theirlocation. The lines parallel with the edge should be drawnwith the pencil end of the gauge…
