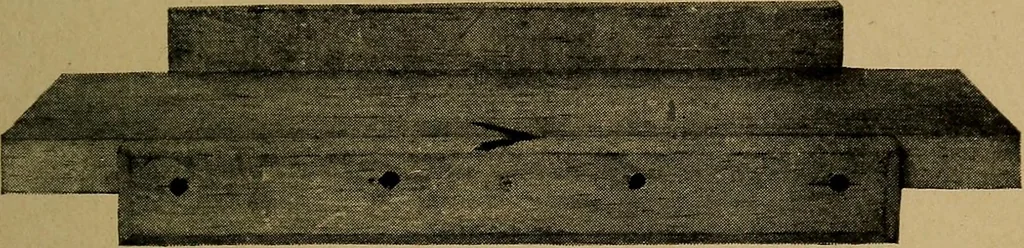

order in which the sides and edges areworked, the tests for each surface, each operation in layingoff spaces, drawing lines, and sawing. WOODWORK FOR THE GRADES 65 LESSON 15 BENCH-HOOK You have learned to plane all four sides of a piece so thatthe surfaces will be true and so that their ends will… … Fig. 74—Bench-hook very particular to true each surface exactly as directed inmaking the scale, using the same tools and in the sameorder. Because these pieces are fastened together, any care-lessness in jointing the edges or truing the surfaces will be dis-covered and may show badly. Try to forget…
