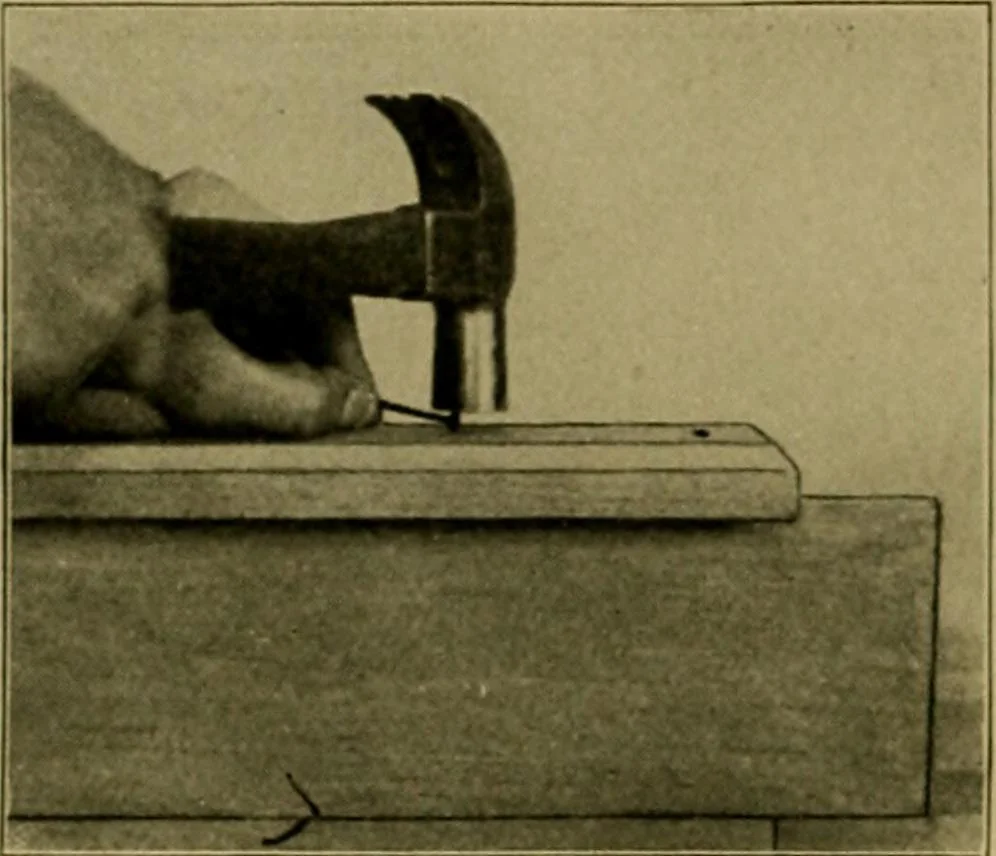

Fig. 98—Piece in Position To determine howfar from the edgeto drive them,place the widepiece on thenarrow one andthen judge thecenter of thepiece (Fig. 97.)Mark the loca-tion of the nailwith a pencil.Drive thenails so they will 84 WOODWORK FOR THE GRADES prick through just enough to keep theplaced… … Fig. 99—Setting Nail with Nail Head have been driven so theheads are flush with thewood, set them by usinga nail as shown in Fig.99, striking it hardenough to drive theheads about fa inch be-low the surface; or nailsmay be set by using anailset, as shown inFig. 100. There are severalstyles of…
