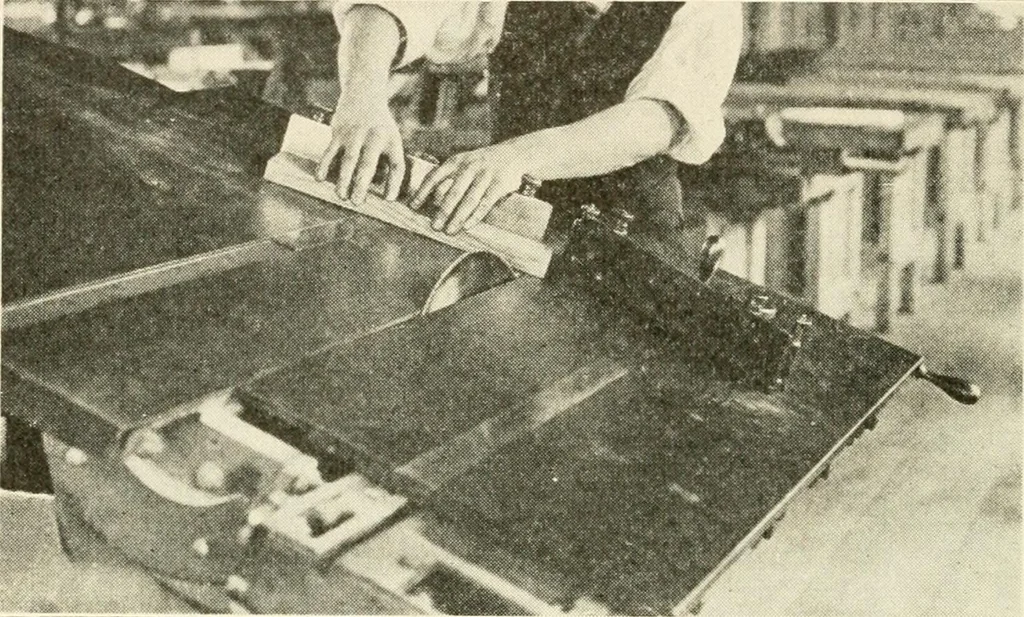

will rest against the pin. Forlong stock the rod is turned end for end and the stopwith thumbscrew made use of. Figs. 163 and 164 show cut-off gages set ready for cut-ting stock at miters, simple and compound. They giveranges from 30° to 135°, 100 WOODWORK FOR SECONDARY SCHOOLS. Fig. 165 shows a… … Fig. 164. Sawing Compound Miters. Tt is possible to cut stock to length using the rippingfence as a stop. To obviate the binding of the stockbetween saw and fence with danger of a kick-back, a metal clearance block is provided tobe attached to the fence. Fig. 166.The stock is placed with its…
