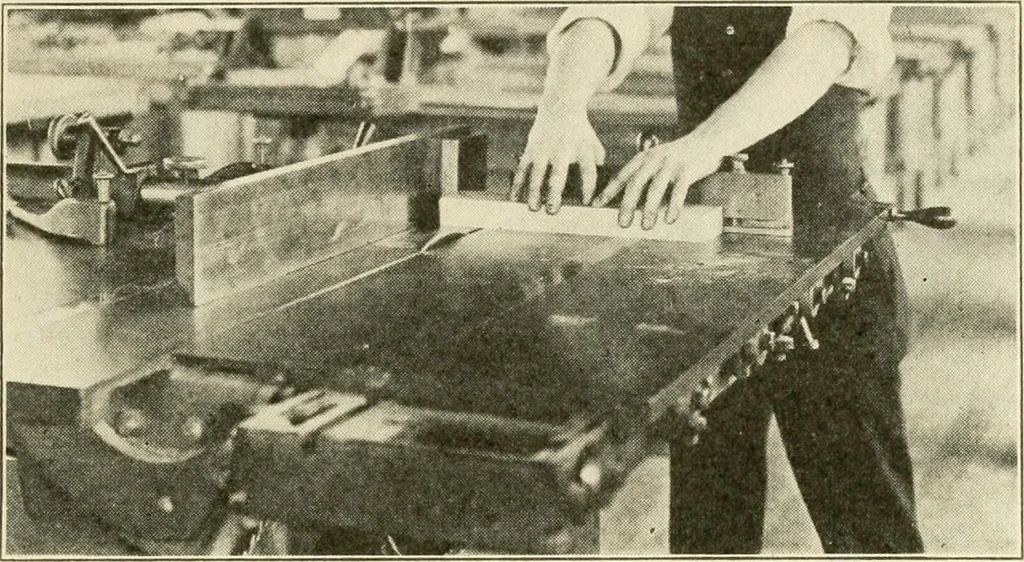

Fig. 165. UniversalMiter Gage. WOODWORKING MACHINES. 101 section. (3) Place the ripping fence and attach the metalclearance block. (4) Adjust the fence for the length of … Fig. 166.Using the Clearance Block—First Step in Sawing Tenons. tenon required, considering the location of the saw kerf.(5) Raise the crosscut-saw the amount required to cutthe depth of shoulder for the tenon. Clamp the shaft of
