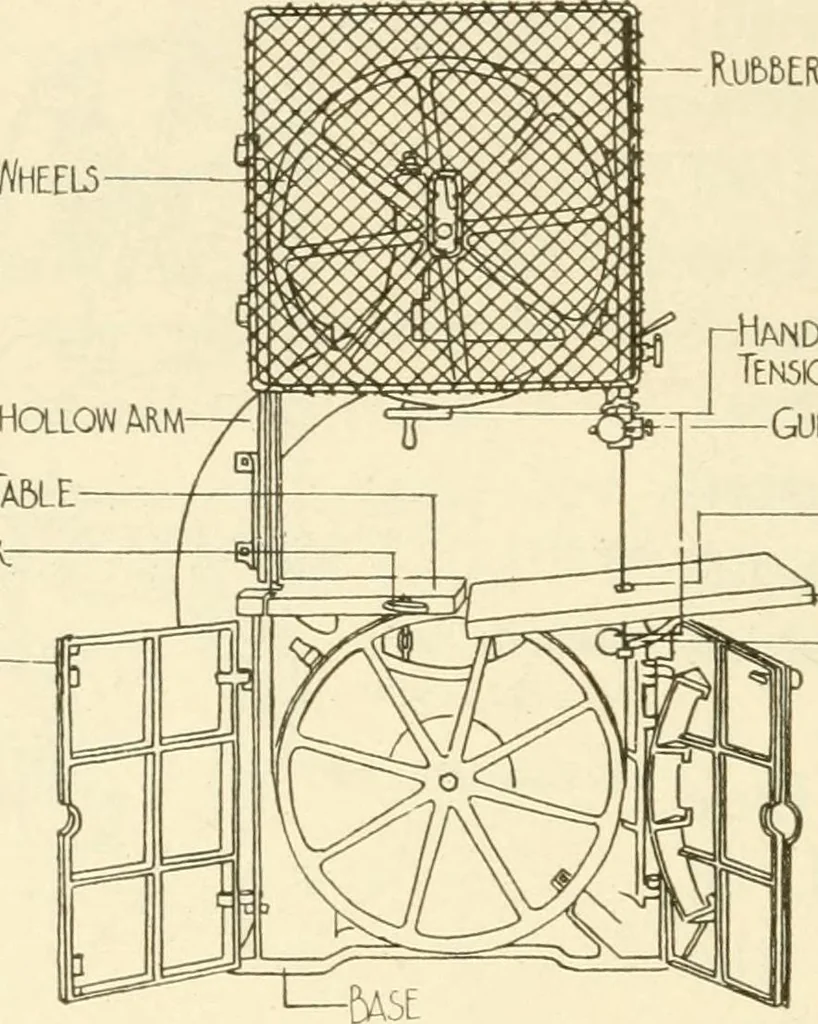

he wheels to see that the sawtracks properly. See that the saw runs in the guides,freely revolving the roller just after the work has beenapplied to the saw. (3) Adjust the guide-post so thatthe guides shall rest as close to the work as possibleand the working line be kept visible. (4) Press… … -R.U55EII E)AND5 HanDWHEEL fOU Tension AdjustnaentGuDES & Rollers ^Throm -Table-INDEX Dial Fig. 182. Band Saw with Guards. being twisted. If a curve is so abrupt it cannot be sawedwithout continual backing up to secure a new kerf,cither a narrowed saw is needed, or more set in the sawl:)eing…
