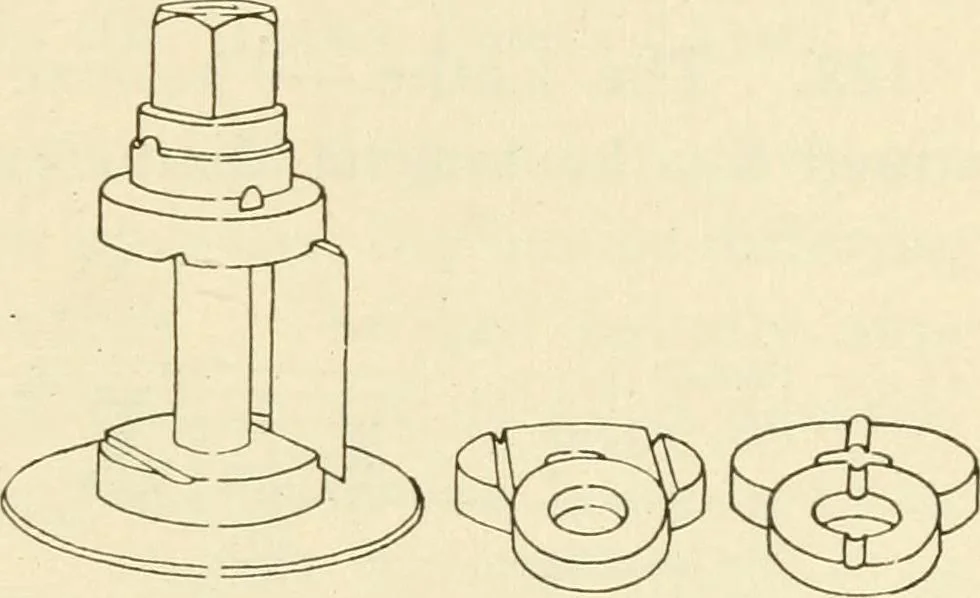

standard. The shaper is a very high speed machine the spindlerunning from 4,500 to 6,500 R. P. M. Two H. P. isordinarily required. Fig. 197 is an example of a single-spindle machine.The double-spindle machines have two spindles made torevolve in opposite directions so that the operator mayquickly… … Fig. 198.Shaper Collars and Cutters. 126 WOODWORK FOR SECONDARY SCHOOLS. spindle, accomplished by a peculiar form of friction coun-tershaft as shown in the illustration. By means of a footcontrol the operator can throw the driving shaft against_ one or the other of the disks which will cause the…
