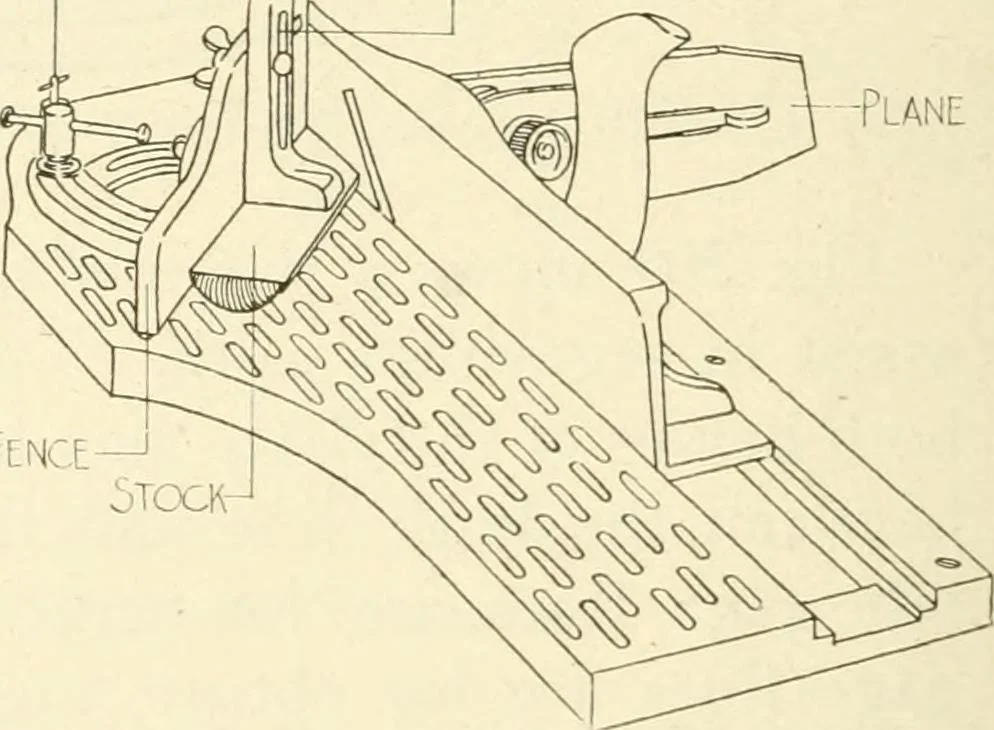

for Segmental Work on Trimmer. 127. Miter Plane and Chute Board.—Fig. 213 illus-trates a machine tool which serves a purpose similar tothat of the trimmer. A plane with its iron set askew is made to travel a path . . (—Back Clamp along a base. An ad- ^ ^veoolulamp justment makes pos-sible the… … I met oTOCK- Fig. 213.Miter Plane and Chute Board. WOODWORKING MACHINES. 135 129. Picture Frame Miter-Box and Nailing Clamp.— By means of a machine tool like that shown in Fig. 215,pictnre frame making becomes simple. Two clamps areattached to a piece of molding and the miters cut. Aftermiters are…
