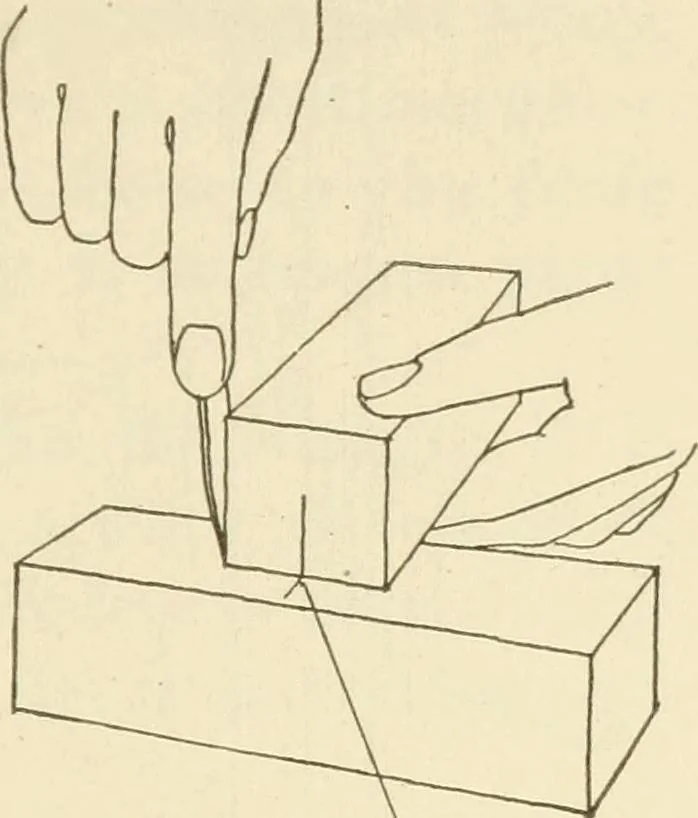

e 152 JOINERY. 153 member upon another and marking upon the secondmember the width, thickness or length of the first.Usually, it is found possible tolocate and square with knife andtry-square a line to represent oneof the sides of the joint. Thefirst member is then held so thatone of its arrises… … touching it. Fig. 237 illustrates Center, Line5Fig. 237. LocatingWITH Center Lines. locating with center lines. Where several members or parts are to be laid out, cutand fitted, it is of the utmost importance that the work bedone systematically. System and power to visualize—that is, to see things…
