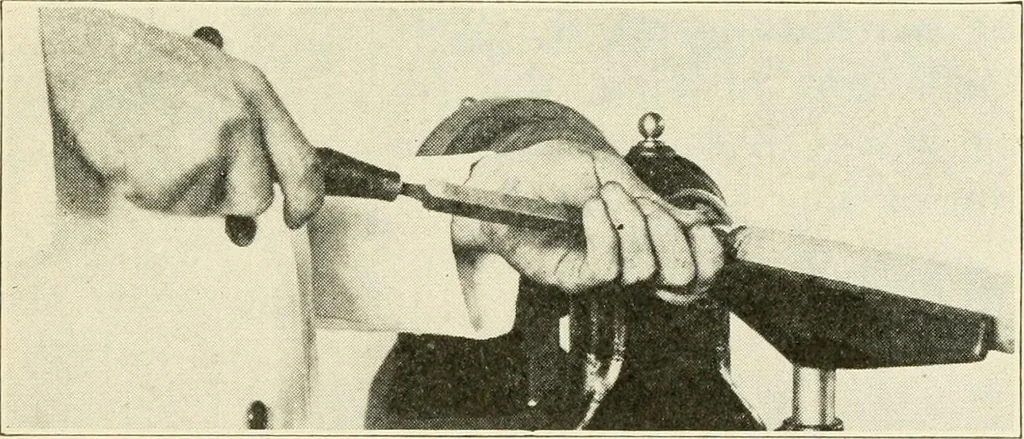

Fig. 299. Parting ToolCuttings for Diameter. 176. Cutting Off; Use of Parting Tool.—The partingor cutting-off tool is used for two purposes: (1) withthe aid of calipers, to determine quickly the approximatediameters desired for a part or parts of a piece of spindleturning, Fig. 299; (2) to part or… … Fig. 300. Using the Parting Tool. desired point. In either case the manipulation of the toolis the same. This is a scraping tool. When so used the blade is 194 WOODWORK FOR SECONDARY SCHOOLS.
