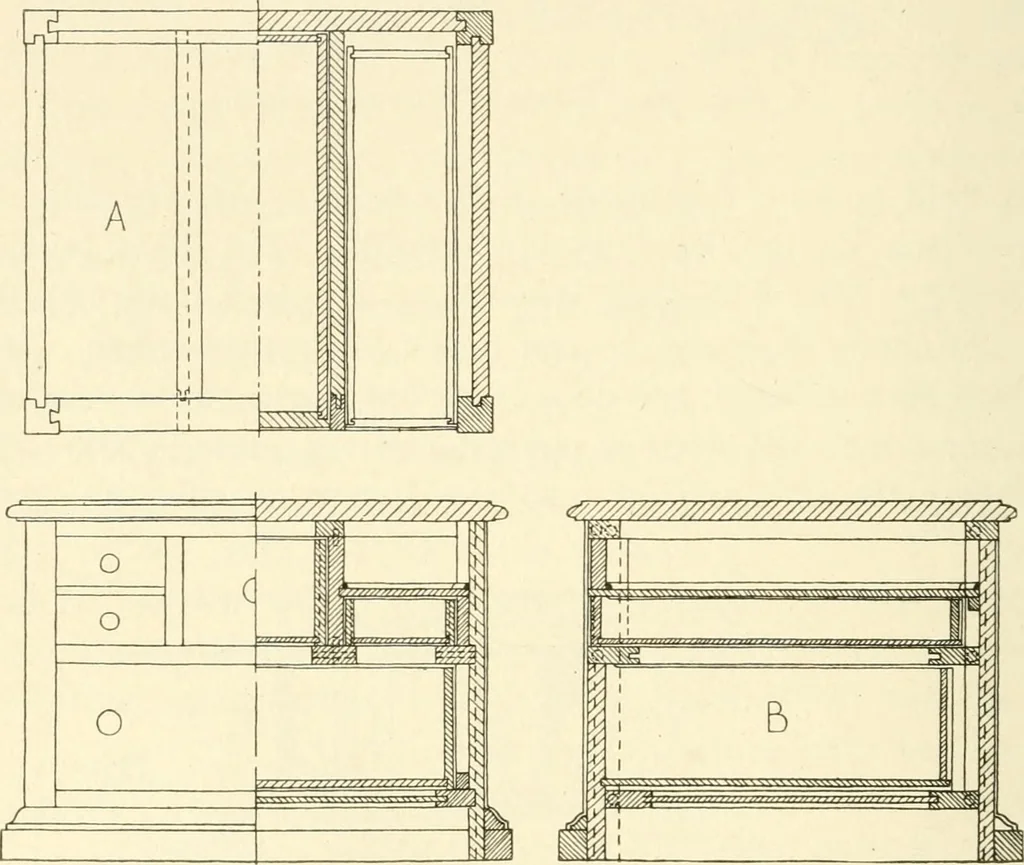

Carcase Construction—The term carcase, asused in cabinet-work, refers to any enclosing frame with-out doors, draw^ers, or fittings. There may be a lower,an upper, a right or a left carcase in a piece of furniture;or the piece may be of such a construction that but onepart may be so designated. In… … Fig. 455. Common Type of Carcase. There are various ways of constructing carcases. Fig.455 illustrates a very common type. Frames are made tosupport the drawers. Grooves are plowed on the inneredges before the members of the frame are assembled FURNITURE CONSTRUCTION 301 and these serve to hold the…
