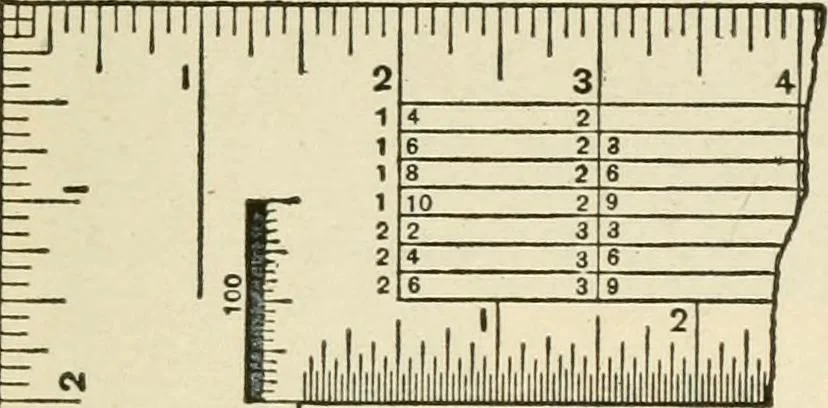

Fig. 25. Brace. its extremities are certain equal distances from the in-tersection of post and beam, A and B, Fig. 25. TOOLS AND PROCESSES. 27 … iG. 26. BrackMeasureTable. As a rule, braces do nothave to be of any verydefinitely prescribed lengths.For this reason the tablegives runs (runs are thehorizontal and verticalmeasurements, A and B, Fig. 25) with in-tervals as shown in Fig. 26. The problem is one of solving for thehypotenuse of a…
