Woodwork for secondary schools; a text-book for high schools and colleges, prevocational and elementary industrial schools (1916)
Griffith, Ira Samuel, 1874-1924 · Peoria, Ill., Manual Arts Press · leaf 34

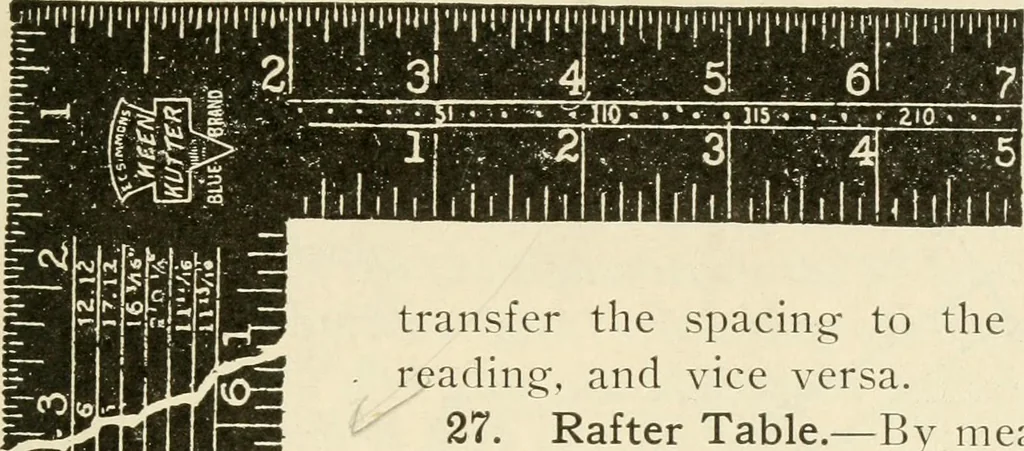

Fig. 27. Board Measure Table. TOOLS AND PROCESSES. 29 … m III Fig. 28. NicholsRafterTable. transfer the spacing- to the scale forreading, and vice versa. 27. Rafter Table.—By means of therafter table, Fig. 28, it is possible todetermine rafter data for a square cor-nered building for the common pitches,the rise and run being known. The run of a rafter,…
