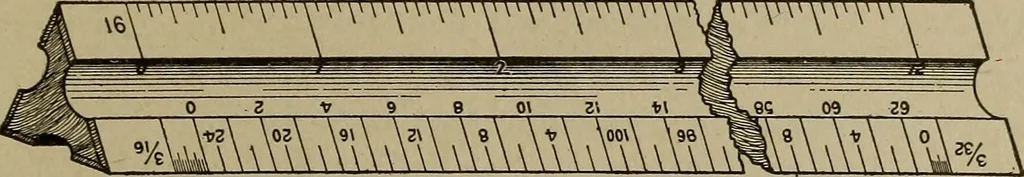

ng is necessary. Wipe thedry after using to prevent crumbling. It is well to grind theink in small quantities as it does not dissolve readily a second time,however, if covered it will keep for two or three days. 80 MECHANICAL DRAWING 15 Scales. The scales used for obtaining measurements on… … Fig. 30. Triangular Scale surfaces for different graduations, and the scales are arranged so thatthe drawings may be made in any proportion to the actual size. Formechanical work, the common divisions are multiples of two; thusdrawings are made full size, J size, J, J, TV, ^V> -bt> e^c- ^ a…
