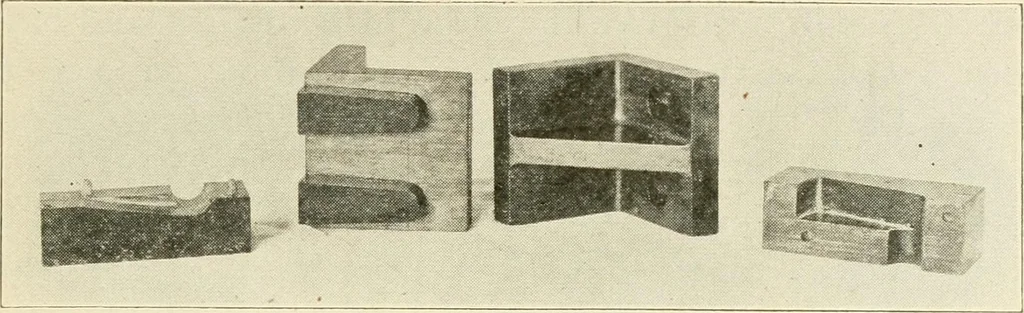

[NTtH TO AiR,RI6 I^.KNIFE LINE5 o .4/ \1 1 1 11 0 VltW AT AB Fk;. 545. Stop-Off Core-P>ox Detail. PATTERN MAKING. 341 (6) Around the center point, on the faces of each piece,describe an arc with a diameter equal to that of the core. (7) With a radius equal to the distance between the … Fig. 546. Pattern and Stop-Off Core-Box. center of the core and an arris of the print, describe anarc upon one outer face of the box. (8) With one pointof the dividers at the intersection of 7, Fig. 545, with thejoint, describe an arc with a radius equal to that of thecore-print, from arris to…
