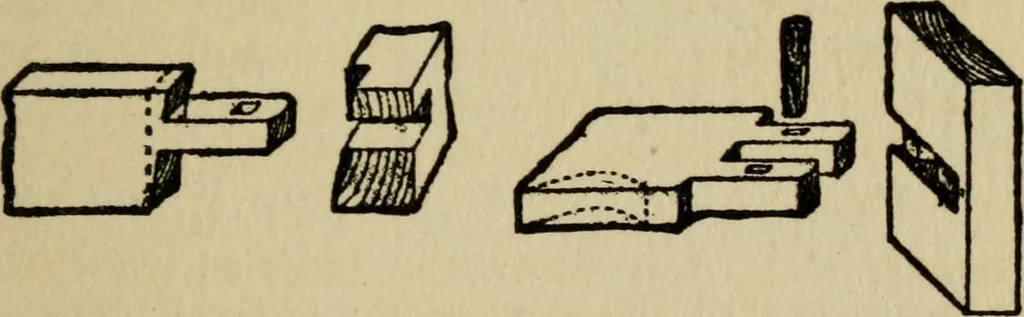

Fig. 149.—Pinning. Fig. 150.—JoiningTop Rails ofUpright Post Fig. 151.—TuskTenon. A Tusk Tenon Joint, with wedge, as used to secure thebinder to the girder when making floors, is indicated atFig. 151. The tenon here is narrow, and engages with themortise, which is situated in the compressional… … Fig. 152.—Another Tusk Fig. 153.—^Tusk Tenon andTenon. Wedge. immediately adjoining the neutral layer. In our illustrationthe mortise has been cut to show the interior. Fig. 152 is a variation of the above joint. Fig. 153 shows tusk and wedged tenons as used whenmaking a portable book or medicine…
