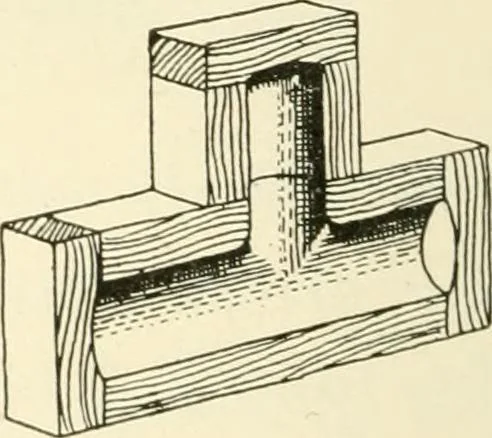

Fig. 570. Coping a Member of Tee-Pipe Pattern. where the joint is to come and the two members rubbedtogether with the partings resting upon a true metal orwood surface plate. The marks uponthe branch will clearly show wherethe joint needs trimming to make itfit properly. The core-box for the 90°… … PATTERN MAKING. 353 strengthened by gluing and nailing a board to its back. 294. Elbow Offset; Return Bend.—(1) Plane true one surface of a block which has been cut at least V^ larger than the re-quired diameter. (2)Saw off the squarecorners. (3) Centerand affix the face-plate to the true sur-face…
