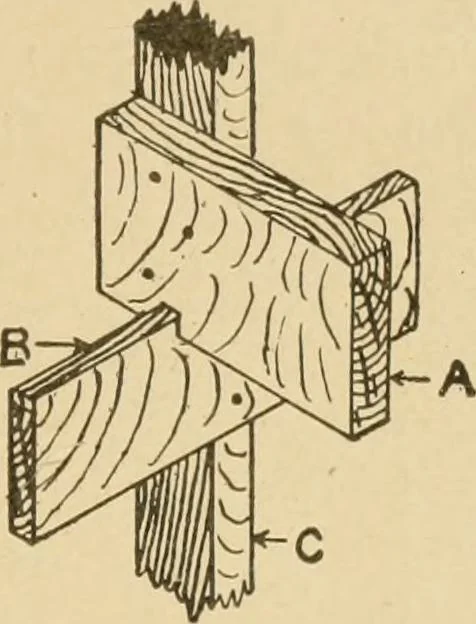

Fig. 65. Fig. 66. . Fig. 67. Notched Studs for Ledger Boards. framed into them as in the braced frame. This notchinsr is shown in Fig. 66 in which A is the ledger board and B the stud. The ledger boards themselves are not cut at all, but the floor joists which they carry are notched over them, as…
