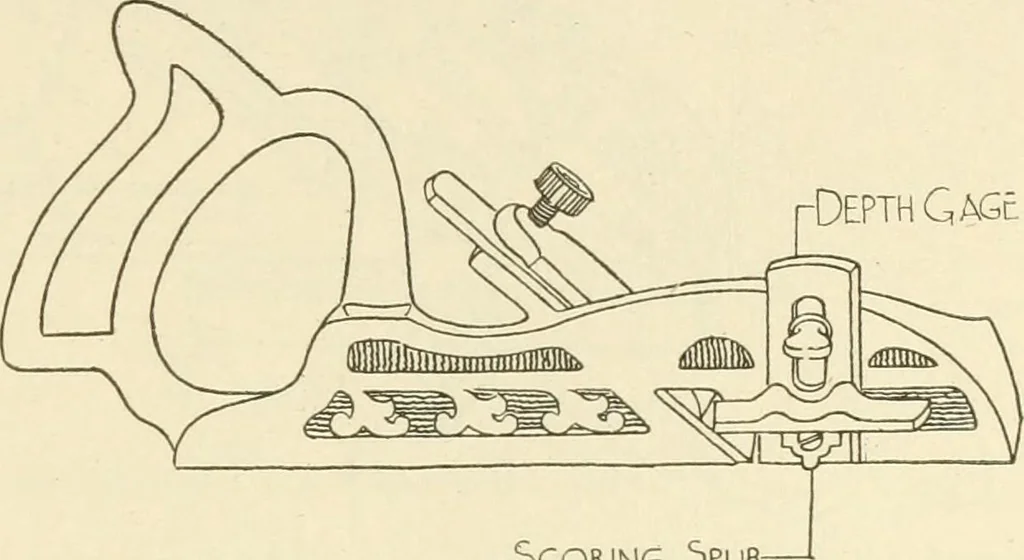

Handle ^LEXI&lE bOTTCM Fig. 65. Circular Plane. 49. Circular Plane.—The circular plane. Fig. 65, isused for smoothing either convex or concave surfaces. By TOOLS AND PROCESSES. 43 Depth Gagc … Fig. 66. 5CORJNG 3PUft:- Rabbet or Rebate Plane. means of an adjusting screw its bottom of flexible steel can be set to arcs of various curvatures. The tool is 10 long- and carries a If cutter. 50. Rabbet or Rebate Plane.—The rabbet plane, Fig. 66, is used in cutting rabbets or rebates. The plane…
