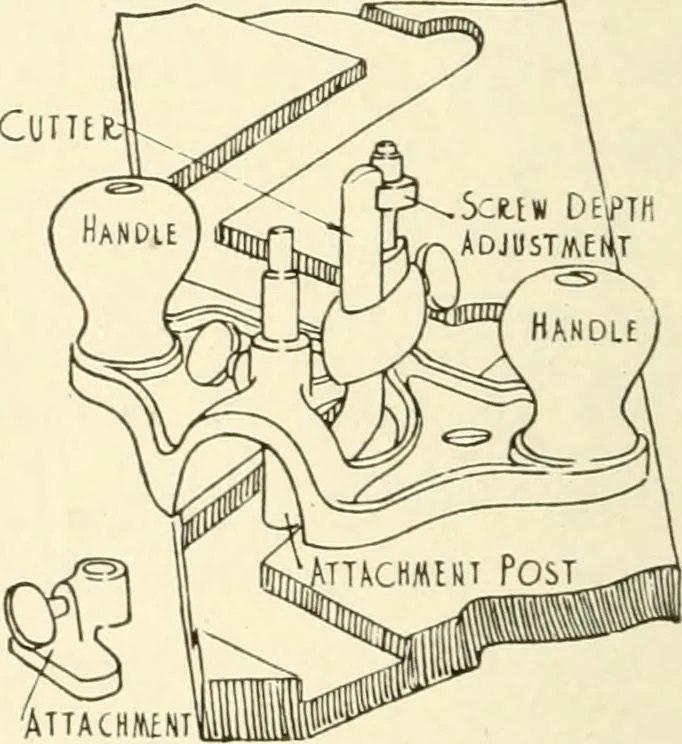

in is the routerplane, Fig. 76. This plane hastwo cutters, V and ^ respec-tively. It also has an attachmentfor regulating the thickness of theshaving and closing the throaton narrow work. When cuttinginto corners the cutter is reversedon the post. 56. Scraper Plan e.—Scraperplanes are made in a… … ATTACHMNI Fic. 76. Router Plane.The angle at TOOLS AND PROCESSES. 49 length is 9^\ This tool can be used as a toothing planeby inserting the toothing cutter shown in the illustration.Toothing cutters areused to rough the sur-face of the wood pre-paratory to layingveneer. It is also usedto scrape…
