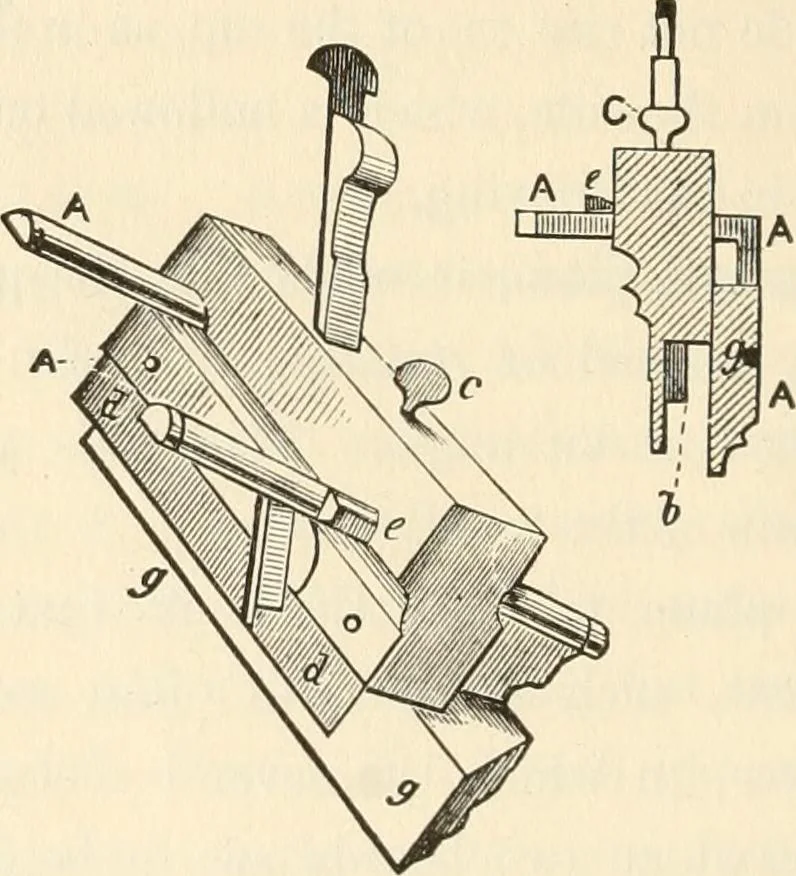

ly cut with the plough, a curious-lookingtool, by no means like a plane in appearance, but of greatuse to the carpenter. Of course, we require various widthsof such grooves, according to the special pm-pose intended,and these are determined by various widths of the cuttingirons, which, however, all… … Fig. 36. to the Baxne in other planes, and it is only modified to soifcthe other parts, which simply act as guides or gauges regu- THE PLOUGH. 93 lating the distance of the grooves from the edge of thel)oard, and the depth to which they are to be cut. Whenthe arms, A A, are removed, you have the…
