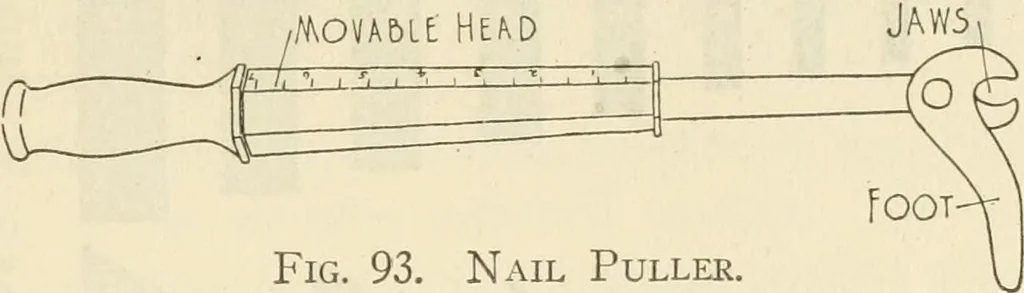

Fig. 92. Qoose-Neck^Wrecking Bar. TOOLS AND PROCESSES. 55 used to force the jaws into the wood on either side 6i thenail head, after which the jaws are closed and the nailwithdrawn by inclining the head to one side, the pro- /MovA5Lt Head … i^TEEL Wheel i—Fr^ame — Mandls =-=—-Wt — Fig. 93. Nail Puller jecting foot being used as a fulcrum. The wood is mar-red, of course, so that the tool can be used only uponcoarse work, as in opening boxes and on rough carpentry. 72. Glass Cutter.—The glass cutter can hardly beclassed as a woodworkers…
