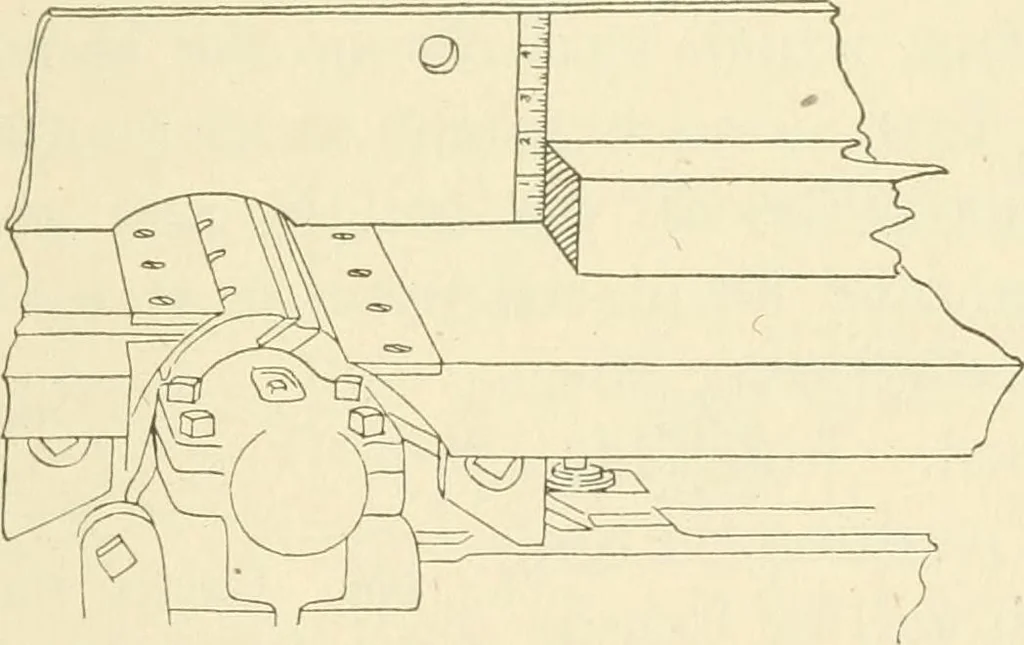

Hand Planer or Jointer.—As the depth of the cut is determined by the distance the stock is below the kniveswhen it is in position tobe fed over the in-feedtable, the first thing forthe operator to do is todetermine whether themachine is set to givethe amount of cut hiswork requires. On allmodern… … Fig. 145. Depth Gage for Jointer. 86 WOODWORK FOR SECONDARY SCHOOLS. indicates the depth of cut, x, Fig. 135. Some machineshave depth gage or thickness scale fastened to the fence,Fig. 145. AVhen a piece of stock is placed on the in-feed tableto be surfaced it is usually rough and irregular and…
