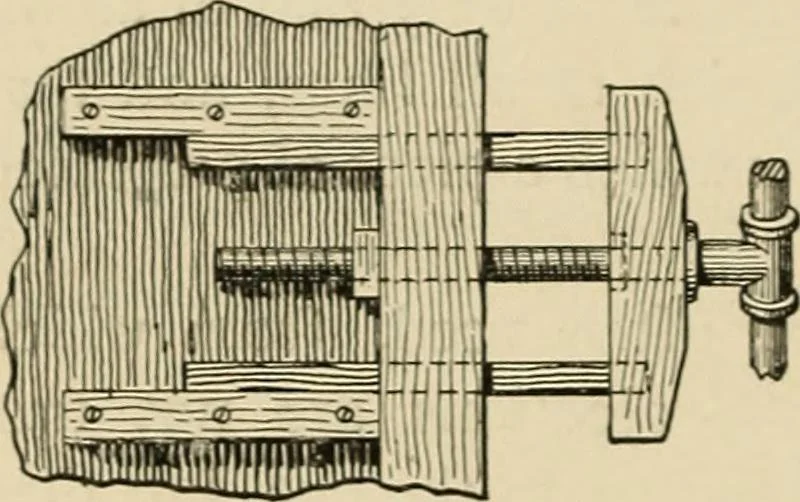

l that is required can frequently be expressed in onedrawing. Isometric perspective will not readily give the correct dimen-sions except in the lines which are vertical or which slant eitherway at an angle of 30° with the horizontal,—/. e., you cannottake the other dimensions right off with a rule… … Fig. 705. SO far as merely showing the general shape or conveying the ideaof the form it can often be advantageously used in representingmany objects containing curved lines. Isometric projection hasthe advantage of being easy of execution, and of being so pictorialthat it is almost always easy to…
