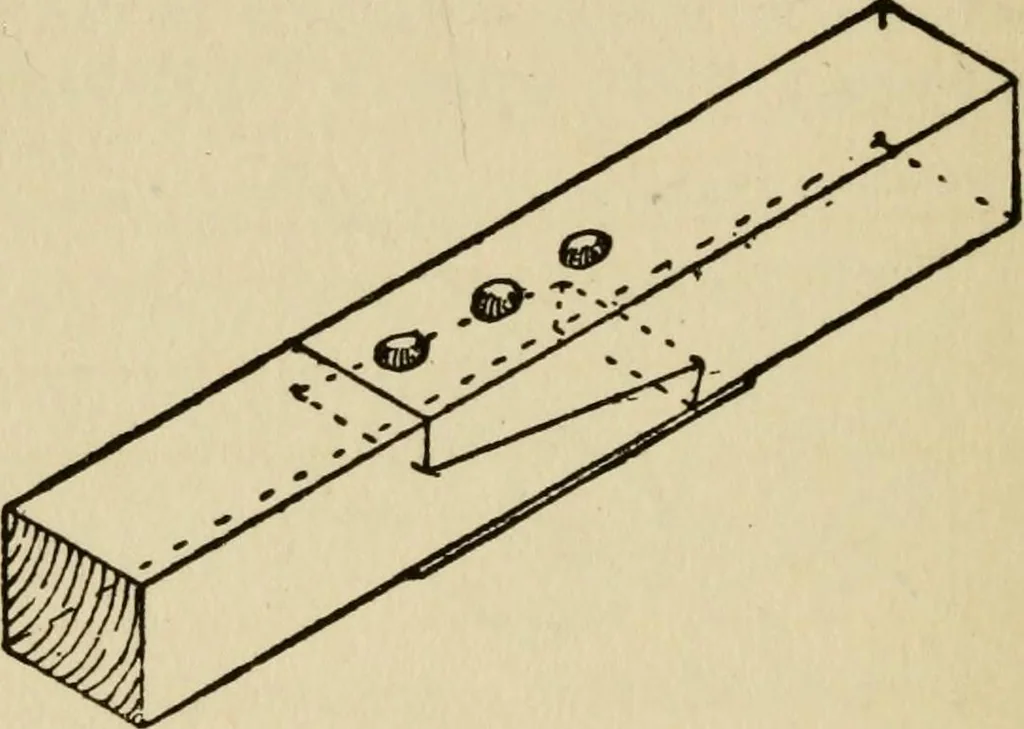

int. depth of the beam, and of equal length to the requiredscarf. 89 Joints in Woodwork The two pieces before they are placed together form ajoint as shown at Fig. 216, the projecting part A fittinginto the recessed portion marked B and the two pieces beingsecured in their respective positions by… … Fig. 218.—Joint Used in Roof Work. resist a cross strain. The face side is left flush, whilstthe underside is assisted by an iron plate. The joint issecured with nuts, bolts, and washers. This type of jointis frequently used for joining purlins in roof work ; theiron plate on the underside is in…
