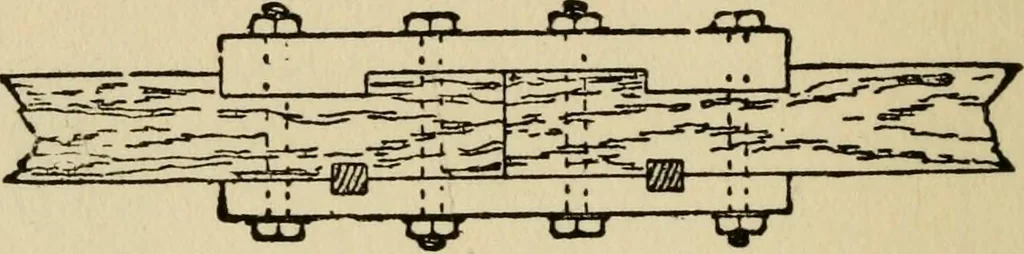

and secured by wooden platesand iron bolts. The upper plate is let into each beam,and the lower plate is provided with two wooden keys toprevent the beams sliding (or creeping ) upon the lower 91 Joints in Woodwork plate. Iron nuts, bolts, and washers are used to completethe joint. The methods of… … Fig. 222.—Fished Joint. ^ The above joints come under the heading of carpentry,and the ordinary tools such as the saw, plane, boring-bitand chisel are all that are requisite and necessary toproduce a sound and serviceable joint. Scarfed jointsare generally of large size, and they are usually made…
