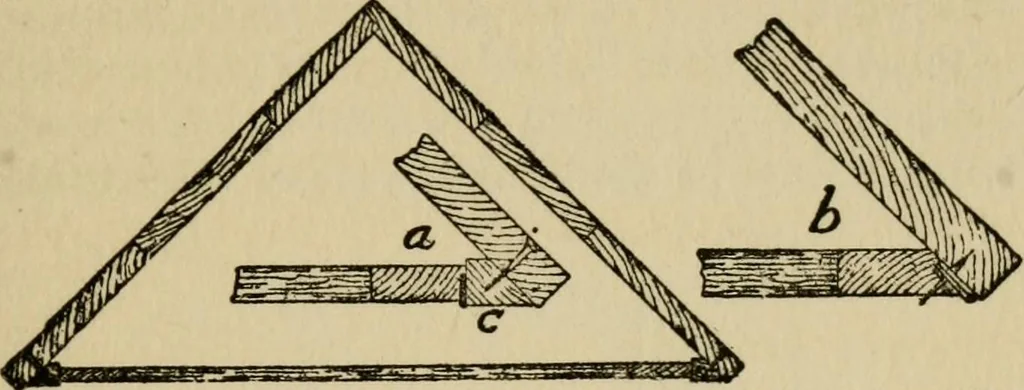

g of a corner cupboardshowing a good method of hingeing the door. The inset ashows an enlarged view of the corner carrying the hinge,also the adaptor piece c, which is fitted to the inside edgeof the cupboard so that the hinged edges are at 90 degs.to the face. This is a far better and stronger… … Fig. 241.—Hingeing Door of Comer Cupboard. of the door breaks away during the making and fitting,or soon after completion. The adaptor piece may havea face mould worked upon it to give a pilaster-hke appear-ance if fancy so dictates.
