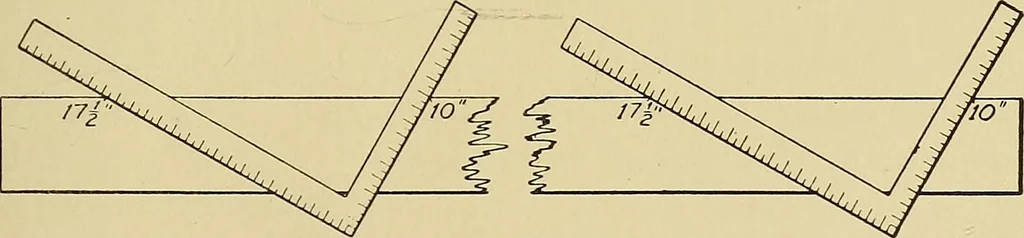

Fig. 199. Method of Finding Bevels forVarious Runs of Rafters … Fig. 200. Cutting Bevels on Common Rafter is, it is 10 feet and the bevel at the foot of the rafter is cut along theblade of the square when the figures read 14 A inches on the blade and10 inches on the tongue. The plumb cut at the top of the rafter is made by holding thesquare in the same position…
