Woodwork joints; how they are set out, how made and where used; with four hundred and thirty illustrations and a complete index of eleven hundred references (1921)

Fairham, William · Philadelphia and London, J. B. Lippincott company · leaf 124

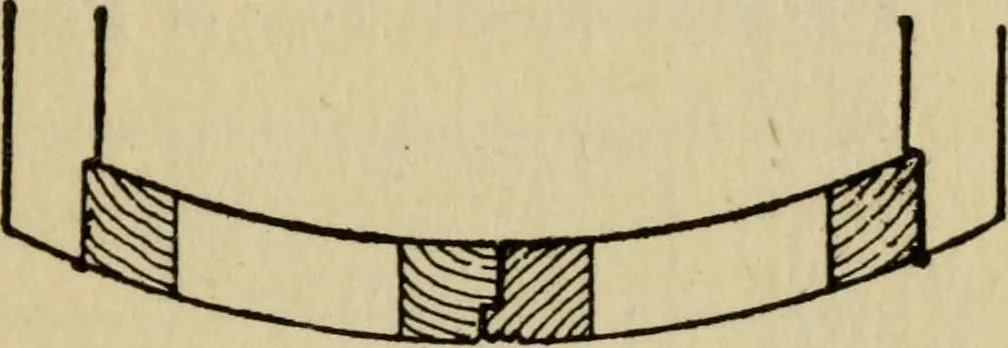

An illustration from Woodwork joints; how they are set out, how made and where used; with four hundred and thirty illustrations and a complete index of eleven hundred references, 1921, leaf 124 — f joint made by using abrass astragal mould as employed on high-class work. Fig. 262 is a sketch of a piece of brass astragal moulding,which may be procured from any cabinet-makers iron-monger in suitable lengths. It is fixed in position byslightly rebating the edge of the door and fastening… … Fig. 262. Fig. 263.—Curved Cupboard Doors withBrass Astragal. Double-headed Rebated Joint. that the hinged rails are received in a rebate which isworked on the carcase ends. The rebated joint at thecentre of the two doors is worked sHghtly on the bevel, soas to allow for clearance when opening the…

Woodwork · Carpentry
