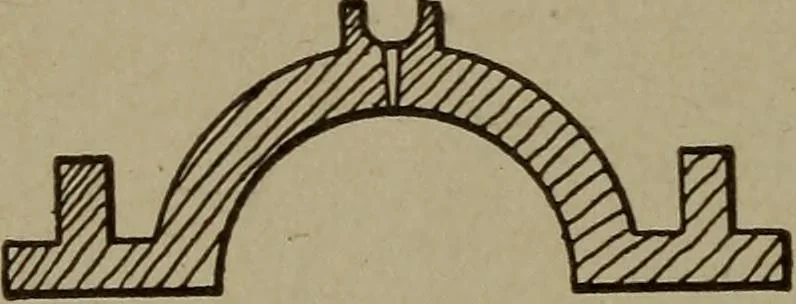

56 PATTERN MAKING which a single-piece pattern can be used, is shown in the journal-boxcap illustrated in Fig. 116. A cross-section of the pattern through twoof the bolt-hole core prints is shown in Fig. 117. The pattern isplaced on the molding board in the inverted drag, and is rammed
