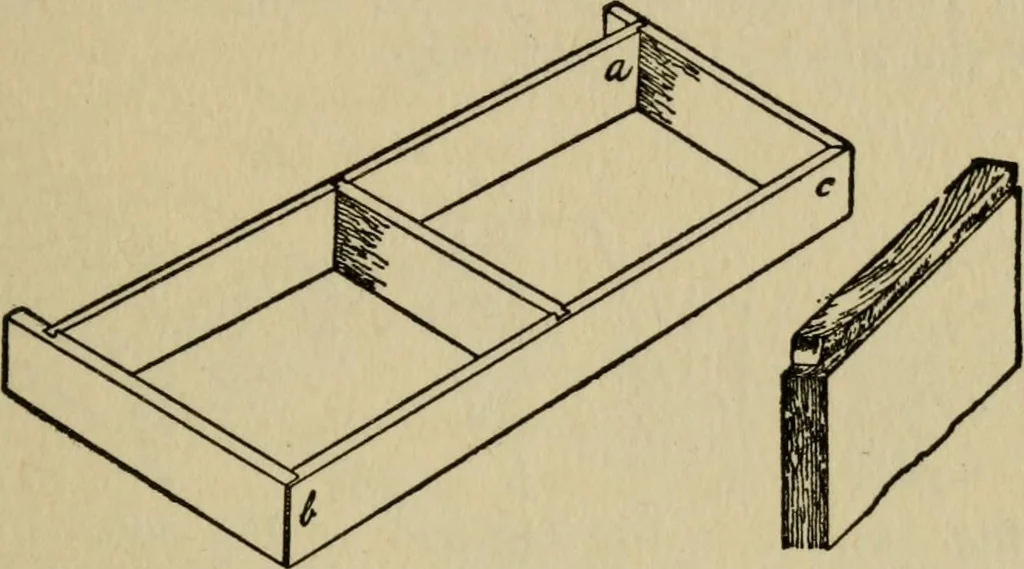

as is used for building up a cornice orplinth. At the joint marked a a housed barefaced dovetail 126 The Dovetail Joint is shown. Another view of the joint, separated, is sketchedat a, Fig. 291, and it will be seen that the dovetail can beput together either from the top or the bottom of theframing… … Fig. 292.—Dovetail Joints Fig. 293.—Top Portion ofin Framing. Frame Division. Some workers, when making either of the above joints,prefer to give a slight bevel to the dovetail, so that itdrives tightly into the housing when put together. A variation of this type of dovetail is frequently usedto…
