Woodwork joints; how they are set out, how made and where used; with four hundred and thirty illustrations and a complete index of eleven hundred references (1921)
Fairham, William · Philadelphia and London, J. B. Lippincott company · leaf 143

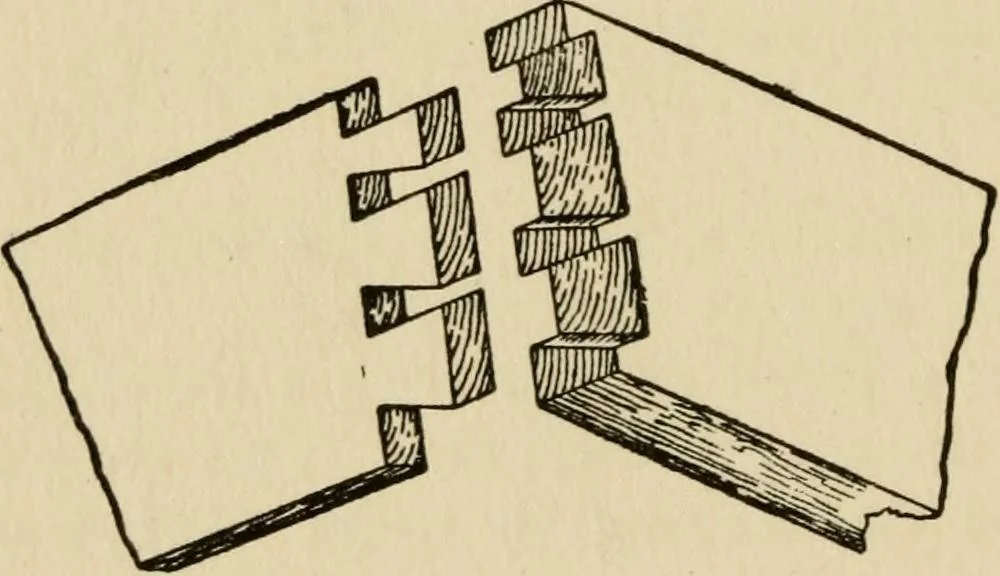

Fi^- 303-—Lap- Fig. 304.—Jewel Fig. 305.—Bevelled Dovetailing. Drawer Side. Dovetailing. line, thus forming the lid. It will be noticed that a speciallywide dovetail pin must be left so as to form part of thelid and part of the lower portion. … Fig. 306.—Bevelled Dovetailing.Parts separated. VZ7 Fig. 307.—BevelledDovetailing withJ Pins parallel toEdges. SETTING OUT AND MARKING THE DOVETAIL JOINT. For constructing a dovetail joint at the corner of aframe, as Fig. 310, it is necessary to trim up the ends of 132 The Dovetail Joint the timber…
Woodwork · Carpentry
