Woodwork joints; how they are set out, how made and where used; with four hundred and thirty illustrations and a complete index of eleven hundred references (1921)
Fairham, William · Philadelphia and London, J. B. Lippincott company · leaf 144

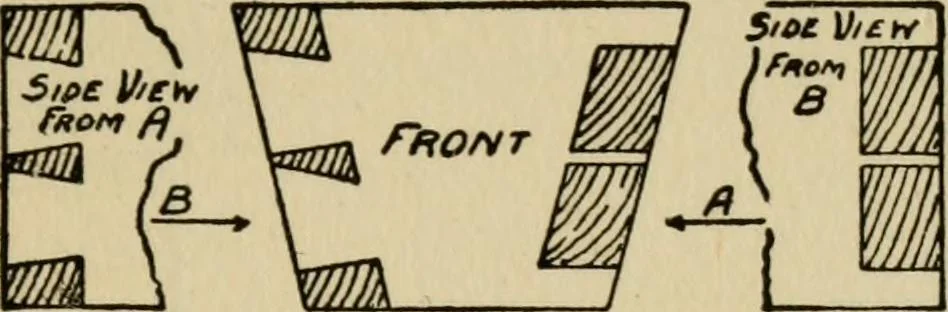

06.—Bevelled Dovetailing.Parts separated. VZ7 Fig. 307.—BevelledDovetailing withJ Pins parallel toEdges. SETTING OUT AND MARKING THE DOVETAIL JOINT. For constructing a dovetail joint at the corner of aframe, as Fig. 310, it is necessary to trim up the ends of 132 The Dovetail Joint the timber… … Fig. 308.—Oblique Dovetailing. iron-faced smoothing plane. The ends of the wood mustbe perfectly square when tested from either the face sideor from the marked edge. Take a cutting gauge and set it to equal the thicknessof the timber, and, holding it as shown at Fig. 312, strike
Woodwork · Carpentry
