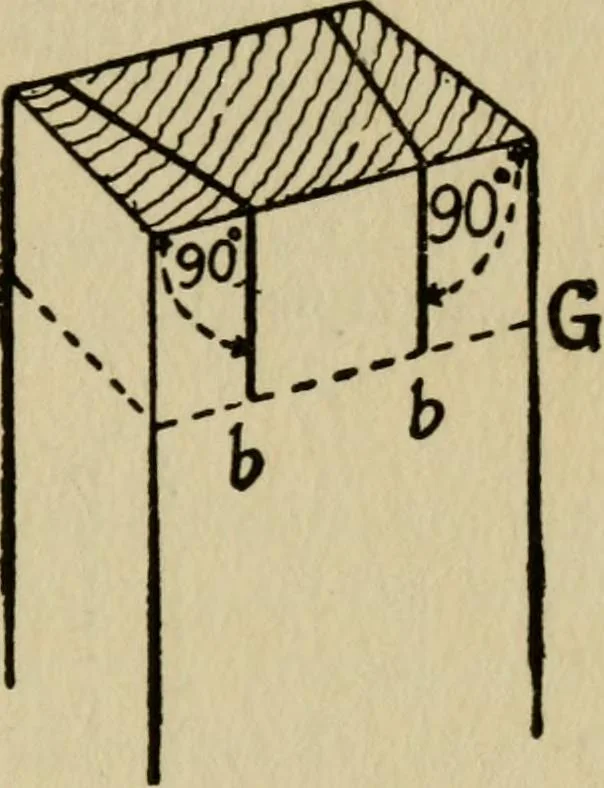

Fig 3i3«—Gauging. Fig. 314.—Marking the Pins. I in. from D to E, and draw a Une from E to C ; this linewill give the correct bevel for a dovetail, and the templateshould be made to fit it. Notice that the lines hh (Fig. 314)of the dovetail pins do not bevel; they are paraUel tothe sides of the wood…
