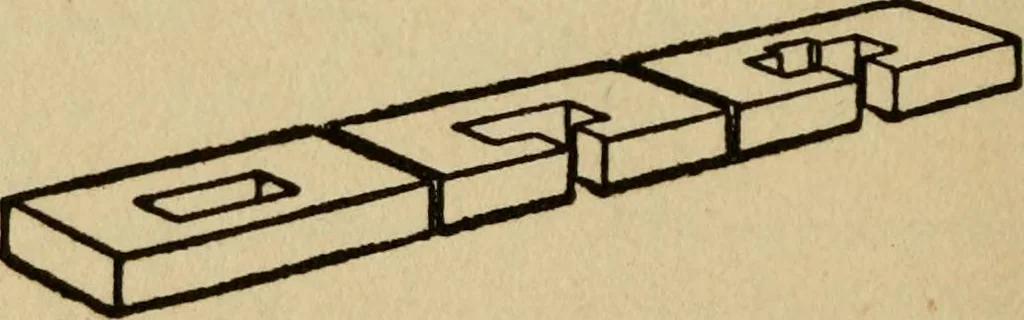

1 » Fig. 424.—^The Three Parts. Fig. 424. In one piece, marked 2, a groove is cut on oneside, f in. wide, and in another piece 3 a similar slot,but i in. wide, is cut, and this is continued on the other … Fig. 425.—How to Cut the Parts. side of the groove to a depth of \ in. The three piecesshould be set out on a 13-in. by ij-in. by J-in. length ofwood, as shown at Fig. 425, and when ready sawn apart. The puzzle is put together as shown at Fig. 426. Inthe first place, hold No. i piece upright as…
