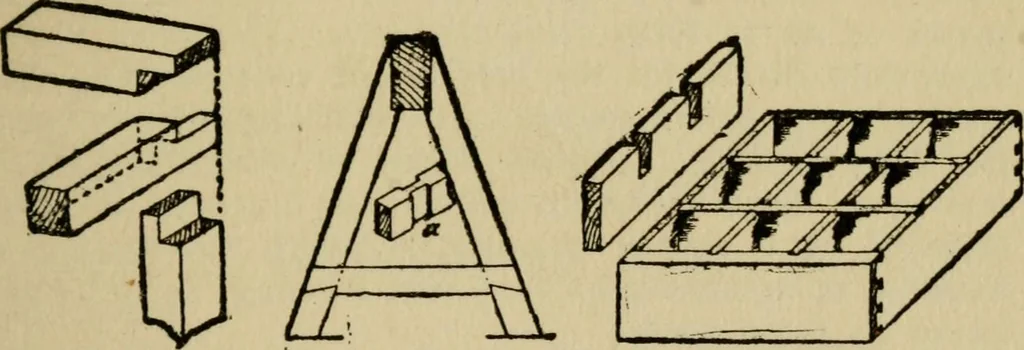

Fig. 55.—CarpentryTie Joint. Fig. 56.—Cross Halving Joint with Housedor Notched Shoulders. Fig. 55 is used in carpentry and joinery where a tie orcross piece ties joists or beams at an angle.Fig. 56 shows the elevation, end view and sketch of a … Fig; 57. — Cross Fig. 58.—Work-Rail and Upright shop TrestleHalved Joint. Joint. Fig. 59.—CellarettePartition Joints. Cross Halving Joint * with housed or notched shoulders.This joint is seldom used in actual practice. At Fig. 57 are shown two cross rails and an upright halvedtogether. This type of…
