Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 253

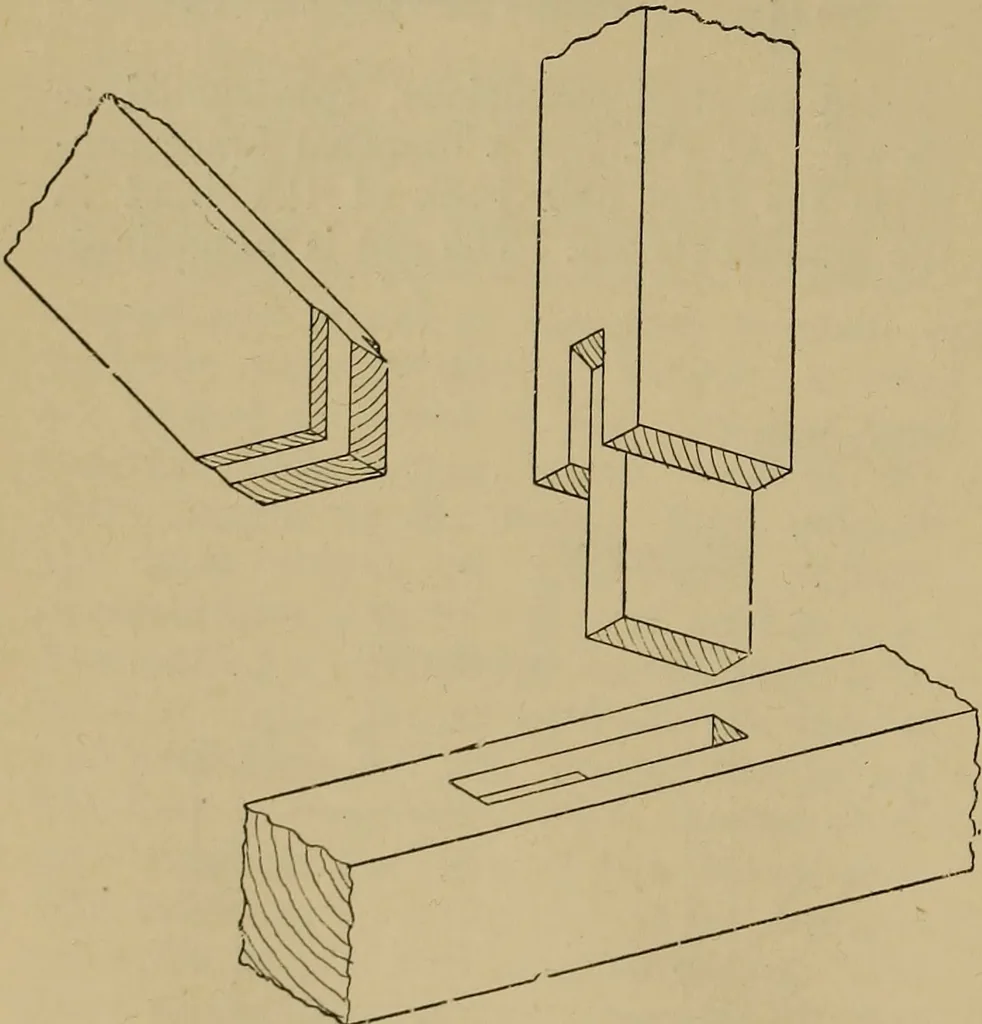

Fig. 787.—Back Elevation of Portable Gallery. and finished with handrail to the rake ofthe seating. The stand is covered withcorrugated-iron sheeting, No. 16 gauge, … Fig. 788.-Enlarged View of Mortice and TenonJoints at A (Fig. 786). screwed into position. In Fig. 783, theletters rbo indicate reserved box over ;and p B o, press box over. Portable Gallery. A portable gallery, suitable for a publichall or other similar building, is illustratedby Figs. 785 to 791.…
Carpentry · Joinery
