Woodwork joints; how they are set out, how made and where used; with four hundred and thirty illustrations and a complete index of eleven hundred references (1921)
Fairham, William · Philadelphia and London, J. B. Lippincott company · leaf 37

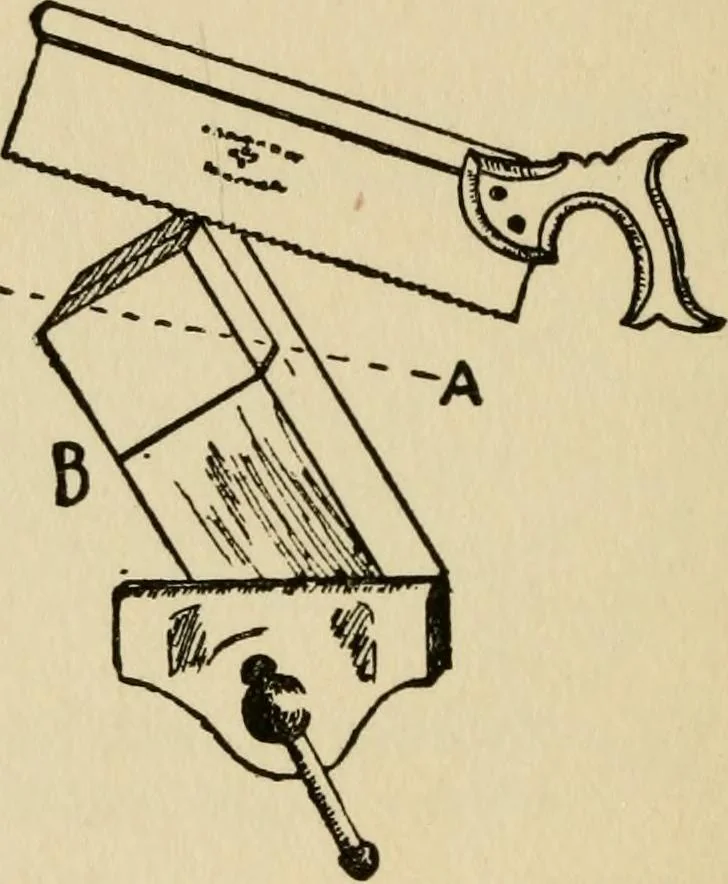

rection for cutting alsoapphes to the bottom of the halving joint. Cutting Joint at End of Timber (Fig. 70).—Should 25 Joints in Woodwork the halving joint be used at the end of a piece of wood, asat Fig. 30, separated, and Fig. 29, completed, the wastematerial may be roughly sawn away, and the… … Fig. 70.—Halved Joint at End of Timber. proceed to saw down the dotted Hne A, carefully watchingthe gauge hne to see that you saw on the waste side of thelines. Then turn the piece of timber with its oppositeedge towards you, and again use the saw as illustrated.You will this time only have to…
Woodwork · Carpentry
