Woodwork joints; how they are set out, how made and where used; with four hundred and thirty illustrations and a complete index of eleven hundred references (1921)
Fairham, William · Philadelphia and London, J. B. Lippincott company · leaf 40

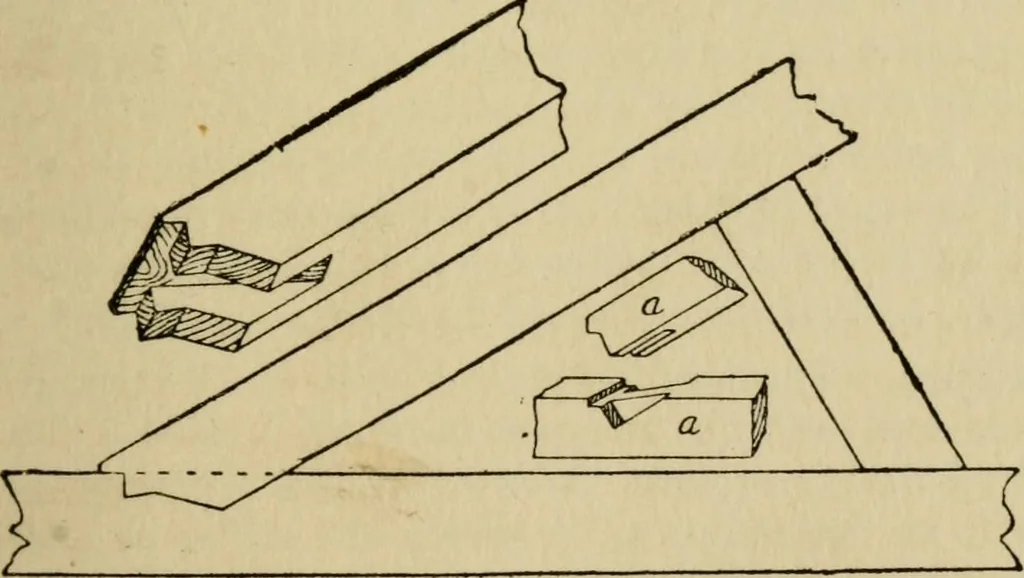

Fig. 79—Oblique AngleBridle Joint … Fig. 80.—Application of Bridle Joint to Roof Truss. of the closed mortise and tenon type, its advantage is thatless labour is required in the making. (See also Fig. 92.) 29 Joints in Woodwork Fig. 79 is an oblique bridle joint used in similar positionsto the above, but when the two pieces meet at…
Woodwork · Carpentry
