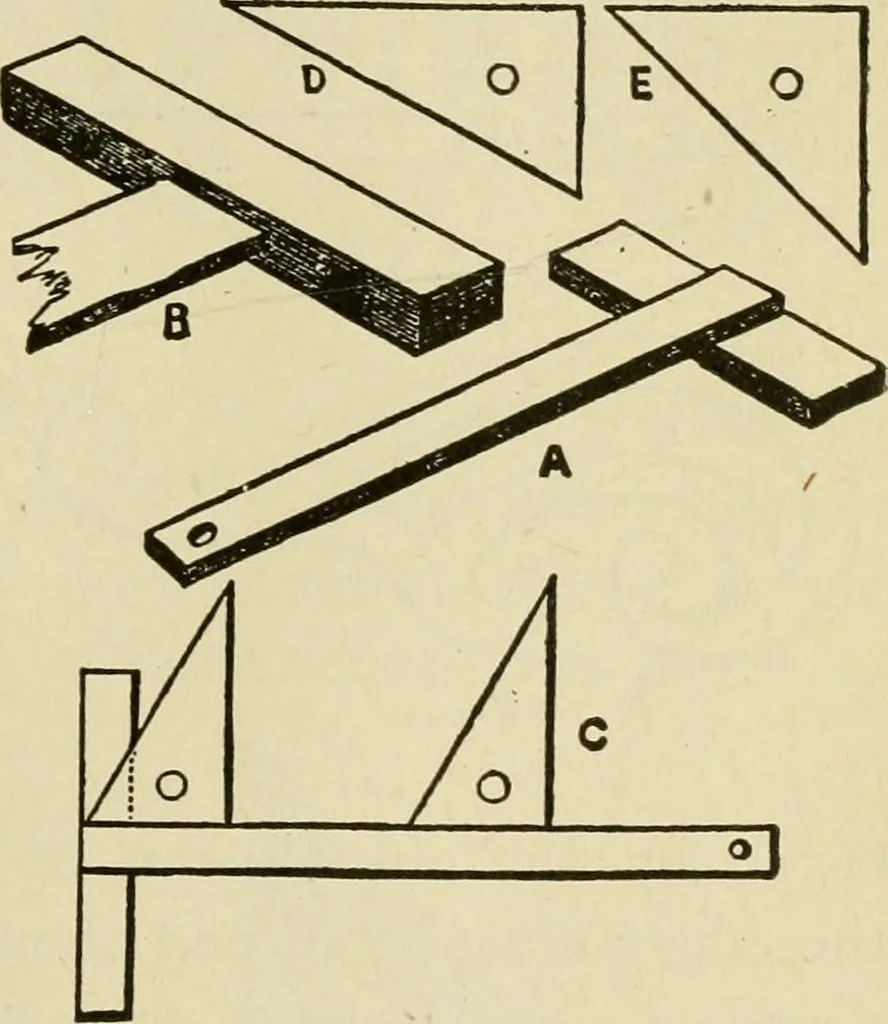

the drawing. The next thing to be considered is the Tsquare. Thisneeds but littledescription, a severy workmanis supposed toknow what thisinstrument is; itmay, however,be noted thatT-squares differin construction.In the common-est the blade,or thin portion,is fixed flushwith one side of the butt,… … Fig. 8. 26 ARCHITECTURAL DRAWING SELF TAUGHT head, to permit set-squares to go over it. Verylarge squares have a couple of little studs, asshown in the figure B, to steady them. French curves, L, Fig. 9, are made in a greatvariety of combinations. They are extremely handy for draw-ing curves…
