Woodwork joints; how they are set out, how made and where used; with four hundred and thirty illustrations and a complete index of eleven hundred references (1921)
Fairham, William · Philadelphia and London, J. B. Lippincott company · leaf 71

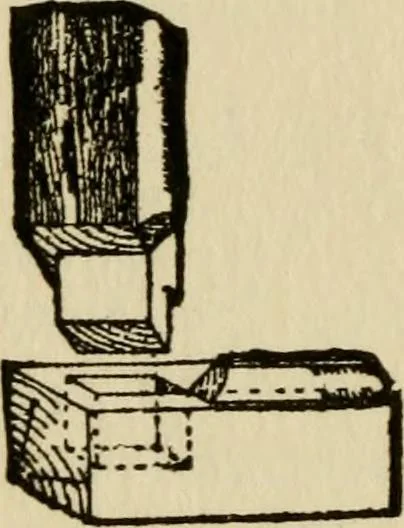

in Woodwork open is seen at a and h. At c it is shown closed. It is ofthe soft-wedging variety and should be interesting toManual Training teachers. A Tenoned and Scribed Joint is seen at Fig. 146. Thecross rail is cut at the shoulder, so as to fit the mouldingwhich is worked on the stile. This is… … A Fig. 147.—Mitred andMoulded Joint. Fig. 148.—^Twin Tenons. Twin Tenons (Fig. 148).—The method of tenoning thebearers which carry the drawers, or the midfeather betweentwo drawers, in a dressing table or similar carcase is hereshown. On completion, the tenons on the midfeather arewedged…
Woodwork · Carpentry
