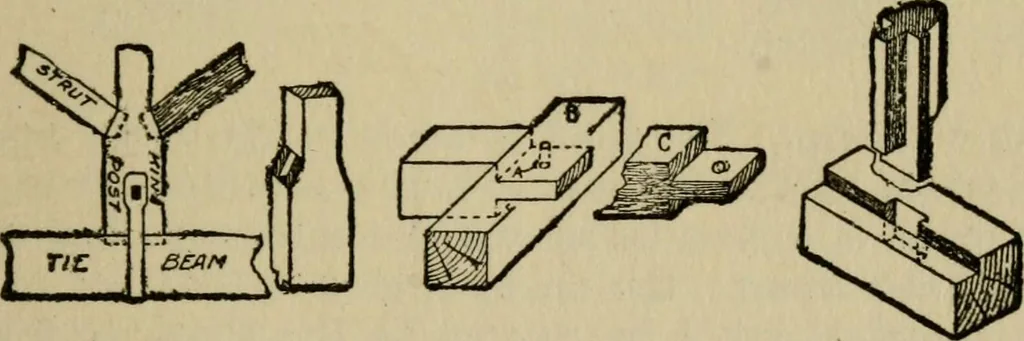

Fig. 158.—Joint withMitred Face, Figi 159.—Rafter Joint a wedge is inserted and the joint glued up. The crampingoperation forces the wedges into the saw cuts, thus causingthe end of the tenon to spread and tightly grip the mortise. Mortise and Tenon with Mitred Face (Fig. 158).—^Thisis a useful… … Fig. 160.—RoofJoints — TieBeam, KingPost and Strut. Fig. 161.—Draw- Fig. 162.—bore Pinning. TenoningMouldedSash Bar. edge as shown; and it is equally useful even if the faceedges have moulds worked upon them. If the joint hassquare edges a rebate may be formed to accommodatea panel by fixing a…
